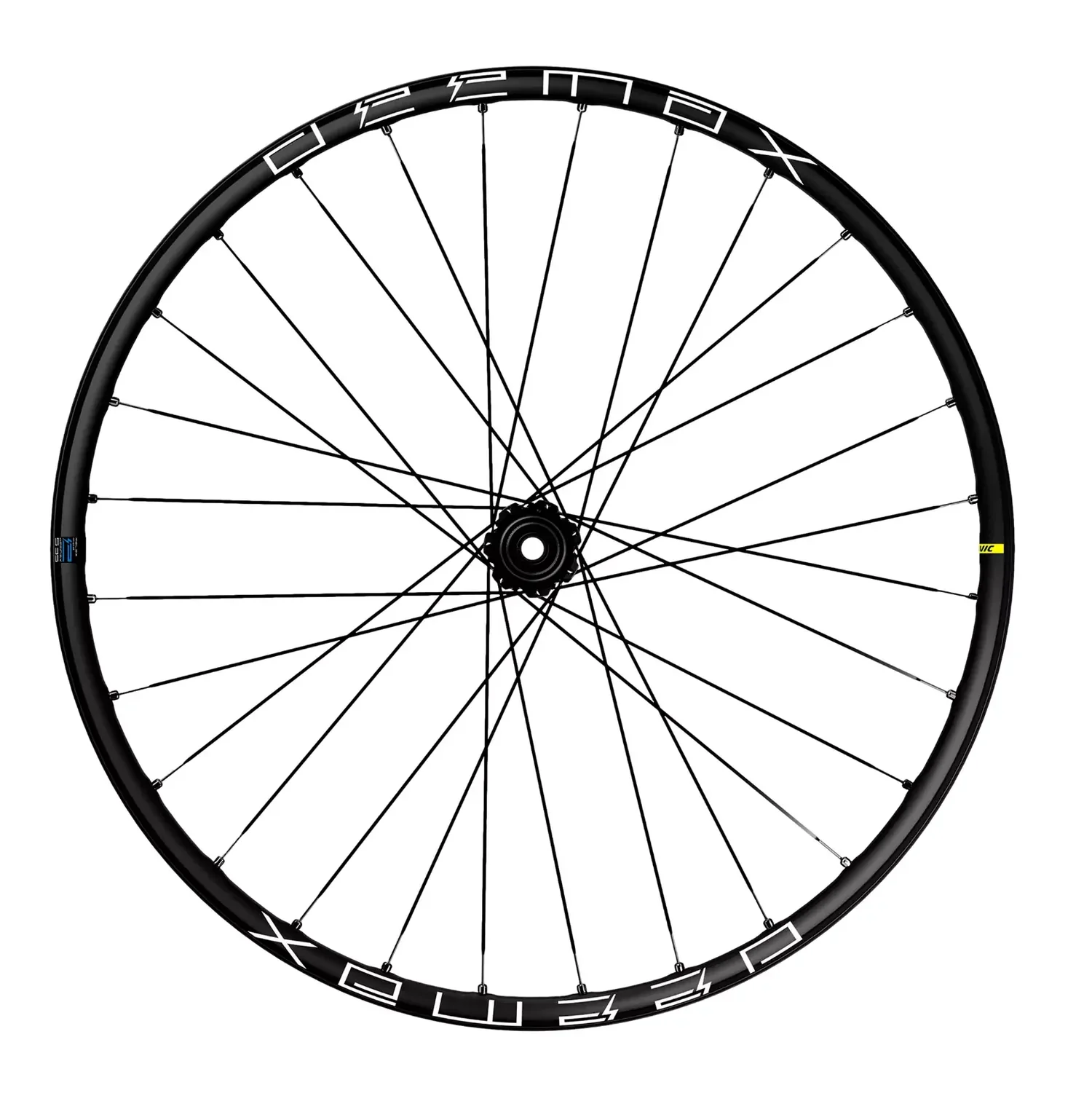

Designed and engineered for the unique demands of E-MTBs,this durable wheel features alloy rims with enlarged rim bed & pinch flat protection making you benefit from the latest Mavic technologies. The right wheel and tire combination can improve your skills and upgrade the performance of your E-bike on challenging off-road terrain. The new E-Deemax S is built specifically for E-bikes and has some unique technologies to help you ride smoother and have more fun on the trail. ISM rim machining removes material from the rims in strategic areas to minimize weight without compromising strength, and the new Black Shield treatment protects the rims against impacts and scratches. Mavic use 28 straight-pull spokes (same spoke length throughout) for a strong connection between the rim and hub, which has the ultra-reliable ID360 double ratchet system for quick engagement and acceleration. Set up for either 6-bolt or center lock disc mounts, these 29” wheels are available for Shimano HG9, XD and Micro Spline freewheel bodies and come with UST tubeless valves, spare spokes and accessories.

Pinch Flat Protection: The patented PFP technology (Pinch Flat Protection) features rims with a wider contact surface at the top of sidewall to significantly reduce the risk of tire cuts and punctures. The 30mm wide rims allow you to run lower tire pressure for better traction and smooth rolling efficiency. The patented Fore technology features a fully sealed upper rim bridge that eliminates the need for rim tape, making it the easiest system for mounting and changing tubeless tires.

• Significantly minimized risk of tire cuts and punctures
• Thanks to its PFP (Pinch Flat Protection) rim sidewalls, this wheel is reinforced to endure the toughest obstacles.
• Easiest tubeless system on the market
• Fore technology: stronger rim profil thanks to less spoke holes,
• Complete sealed rim and no rim tape for the best system on the market brought by the pionneers of tubeless.
• Reinforced hub
• Specially designed for the added torque of E-bike motors, validated for a total weight supported of 180 Kg
• Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
• Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
• ASTM category 5 : gravity riding focused on the descent

• Material: Maxtal
• Height: 22 mm
• Joint: SUP welding technology
• Internal width: 30 mm
• Drilling : Fore tapeless tubeless technology (front 28 holes)
• Braking: disc
• Profile: asymmetrical
• ETRTO size: 622x30TC
• Tire: UST Tubeless Ready
• Real weight: 994 g

• Material: steel
• Shape: straight, extra-flat, constricted, antirot (front)
• Nipples: brass, black
• Screw: M7
• Lacing: crossed 3 (front)

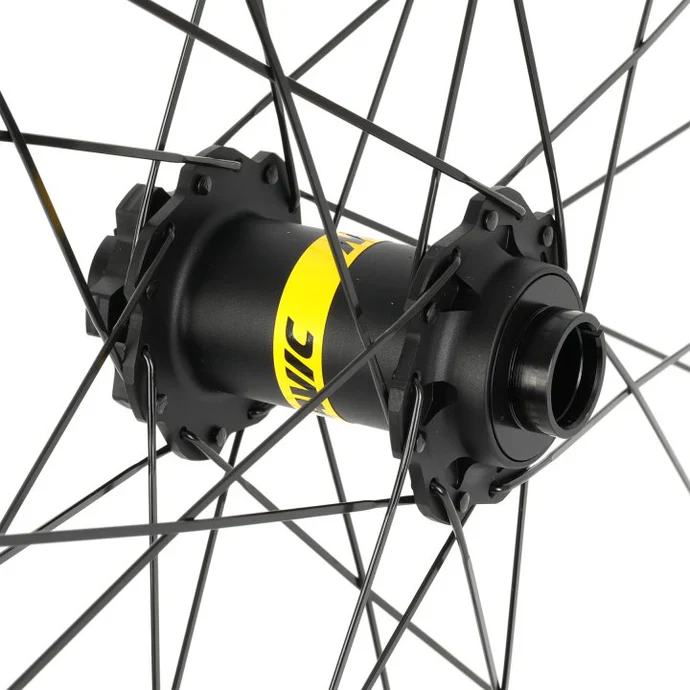

• Body material: aluminium
• Body design: INFINITY
• Disc standard : 6 Bolts
• Axle material: aluminum
• Axle size: front 15x110
• Freewheel technology: Instant Drive 360
