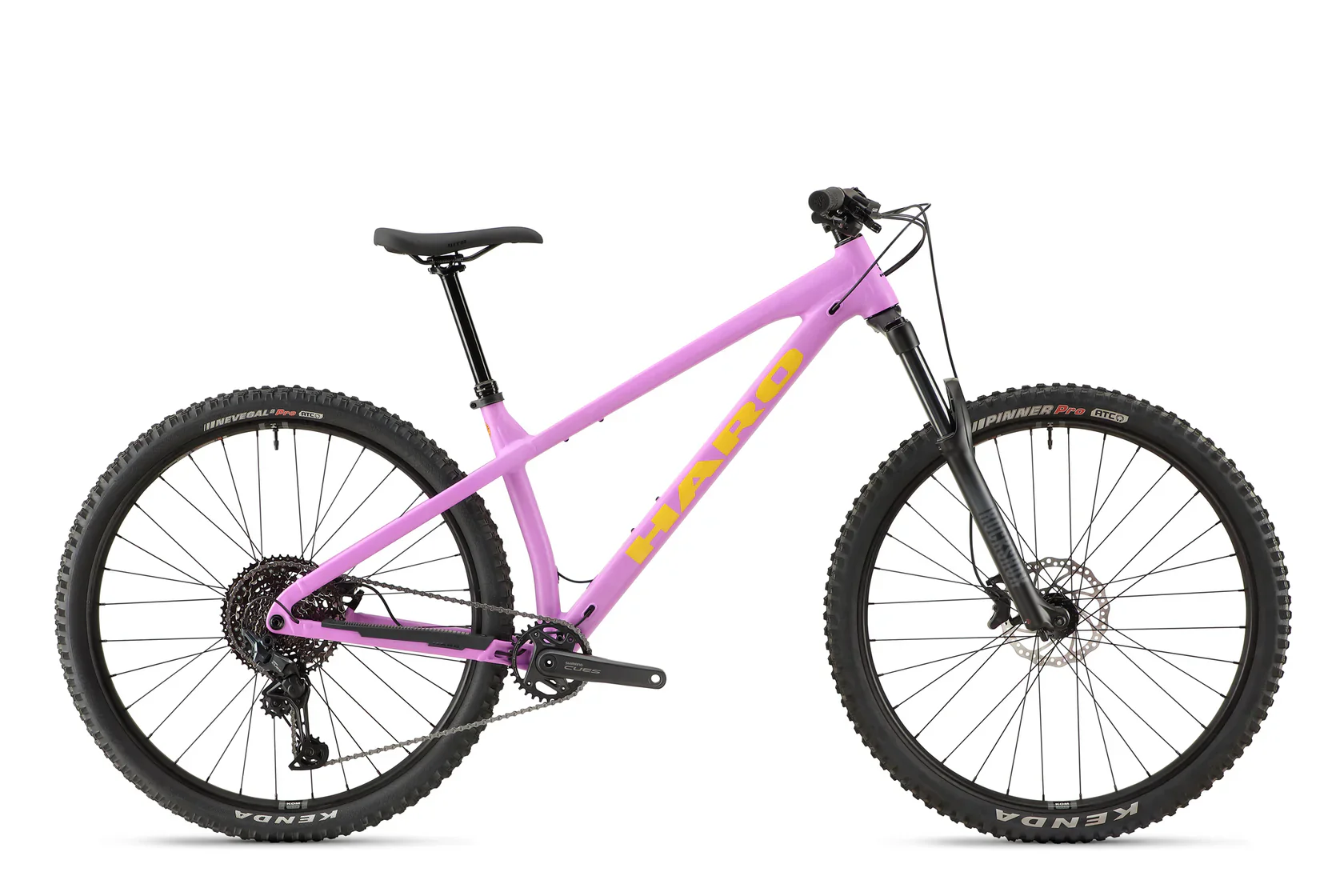

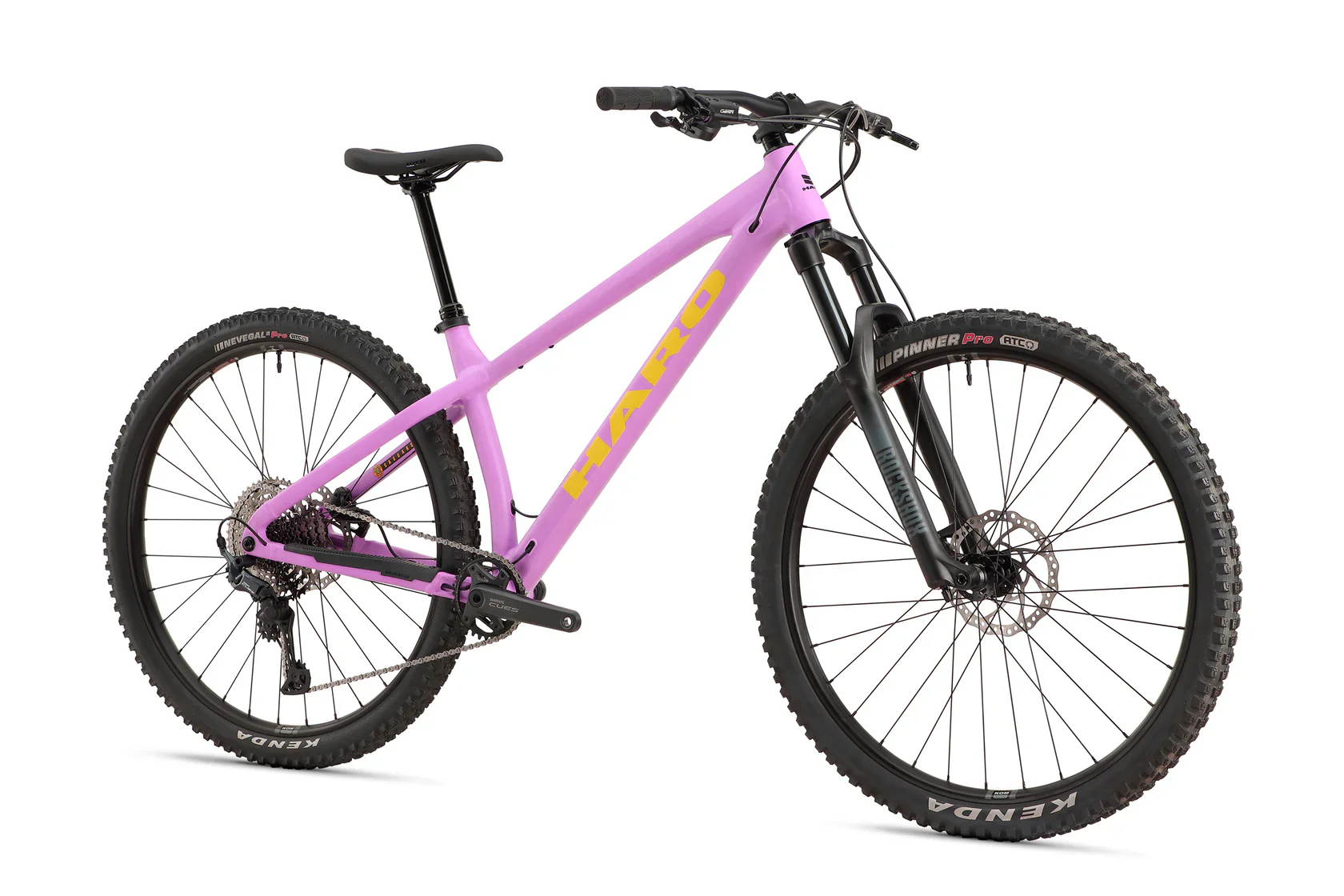

The most affordable of the Saguaro family. The Saguaro 3 features the same top-shelf aluminum frame set as levels 1 and 2. We dialled back the spec a little to bring the cost down, but there's no compromise in performance: RockShox TK35 140mm travel fork, Shimano Cues 11-speed gearing, WTB rims, sealed hubs, tubeless tyres, and a TranzX dropper post — everything to handle business in style.

The Saguaro Family: Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose-built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedalling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed.

As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't.

All three models of the Saguaro bike collection feature our heat-treated, hydroformed 6061 aluminium Saguaro frame with three spec levels to fit your needs (and budget).

• Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.

• Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.

• RockShox TK35 Silver. 140mm travel fork.

• WTB KOM Team 32 hole rims, with CNC-ed, sealed 15mm thru-axle front and six-sealed bearing, 12mm thru-axle (rear) hubs.

• Shimano Cues 11-speed Shadow Plus transmission

• Tires: Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included. Small size features 27 X 2.5" rear "mullet" configuration.

• TranzX dropper post. Size-specific per frame size.

• Tektro Gemini HD-M530 hydraulic brakes. 4-piston front, 2-piston rear. 180mm rotors.

• Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear
• Please note: brakes are set up in EU specification, meaning that the front brake is on the left and the rear brake is on the right.

Geometry

Size Guide



Specification

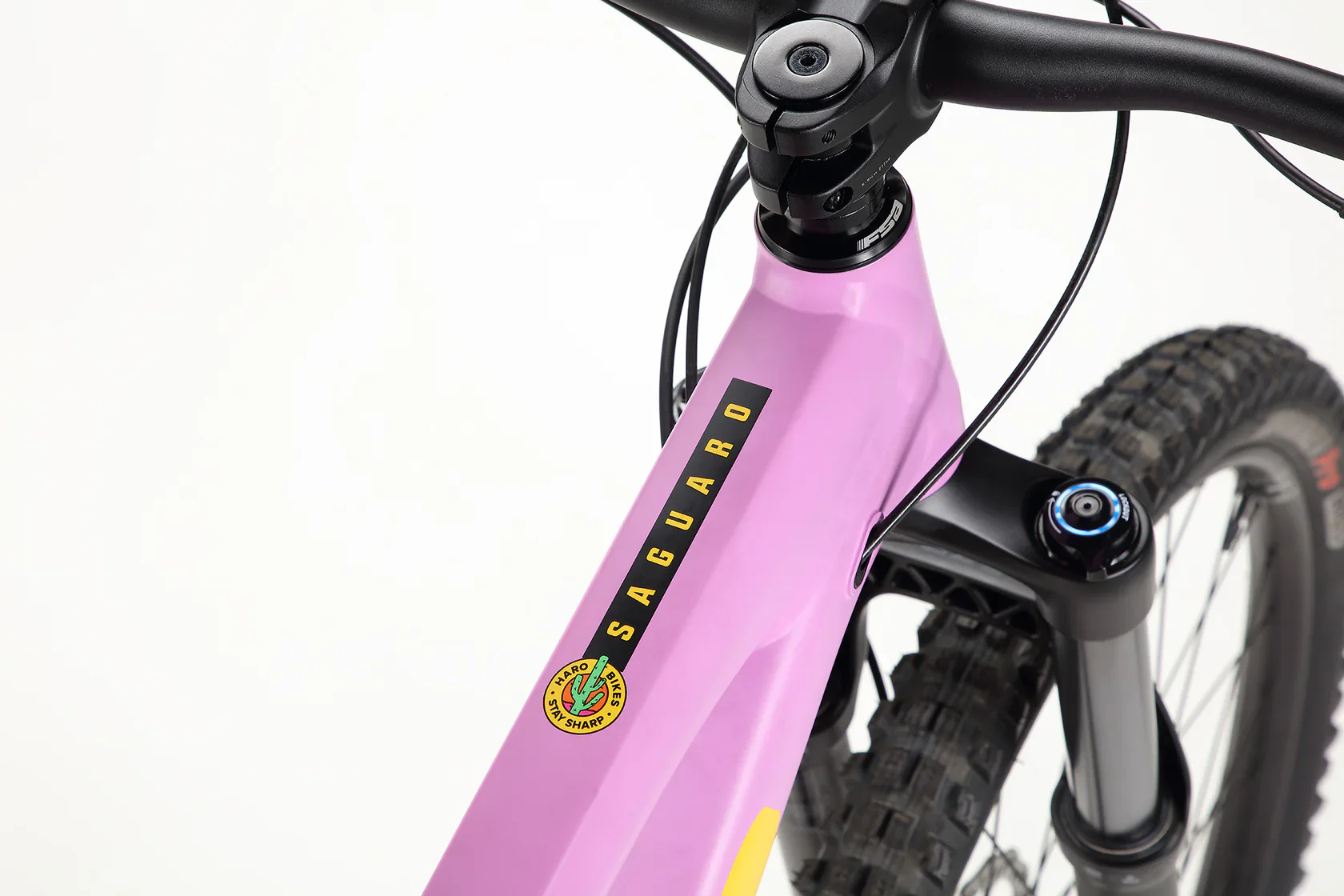

Frame:	Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires.
Fork:	RockShox TK 35 Silver 140mm

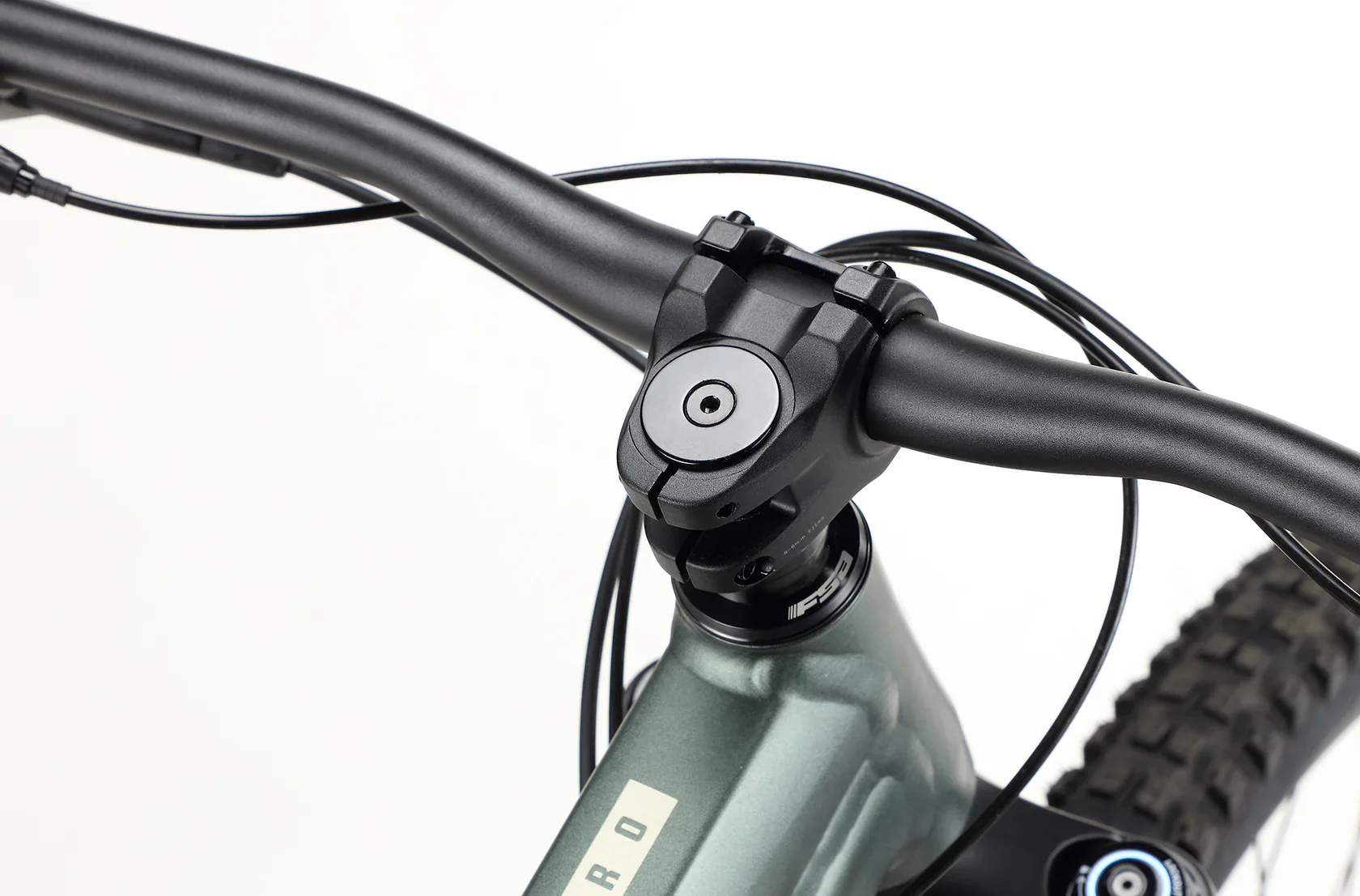

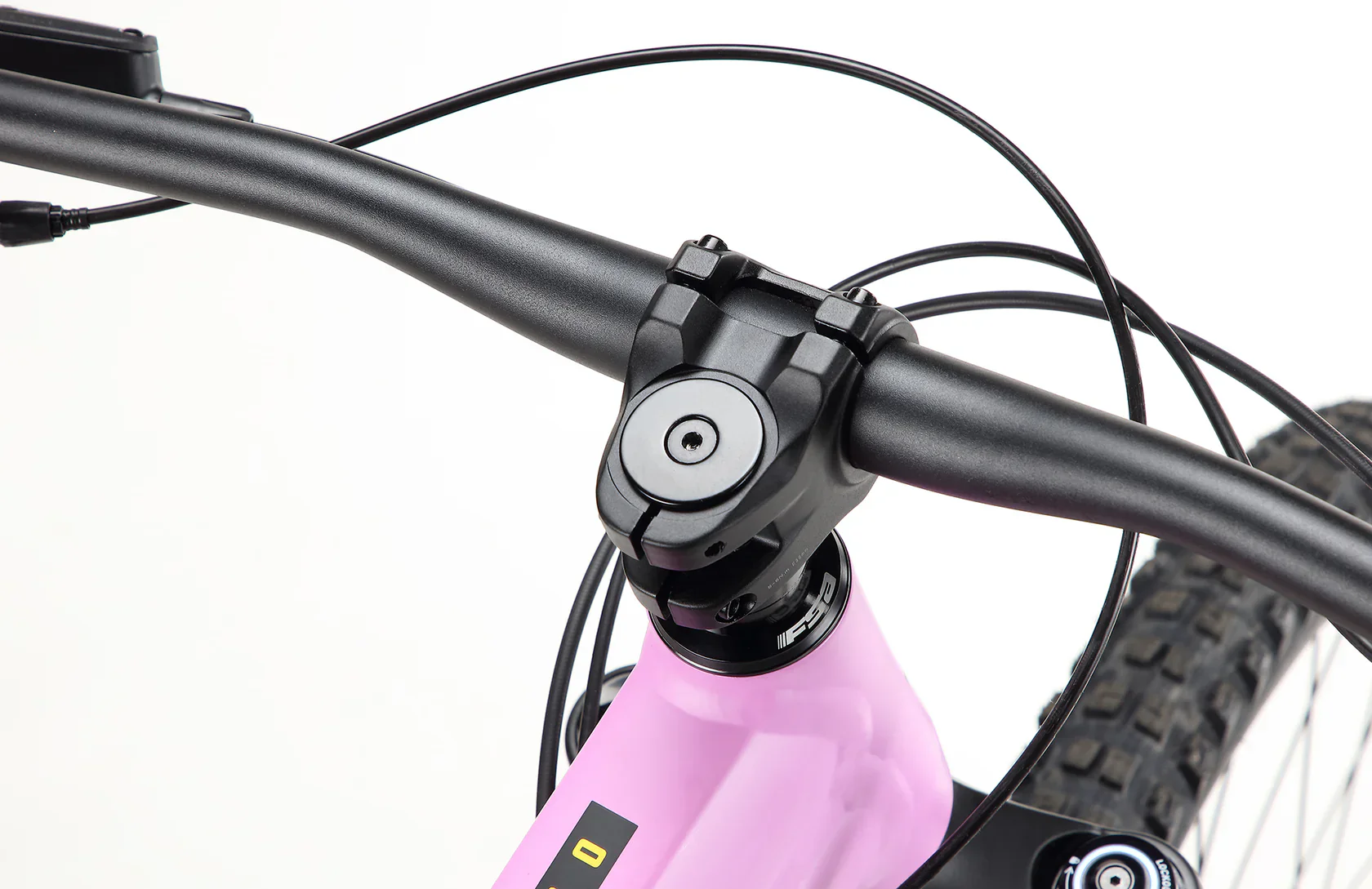

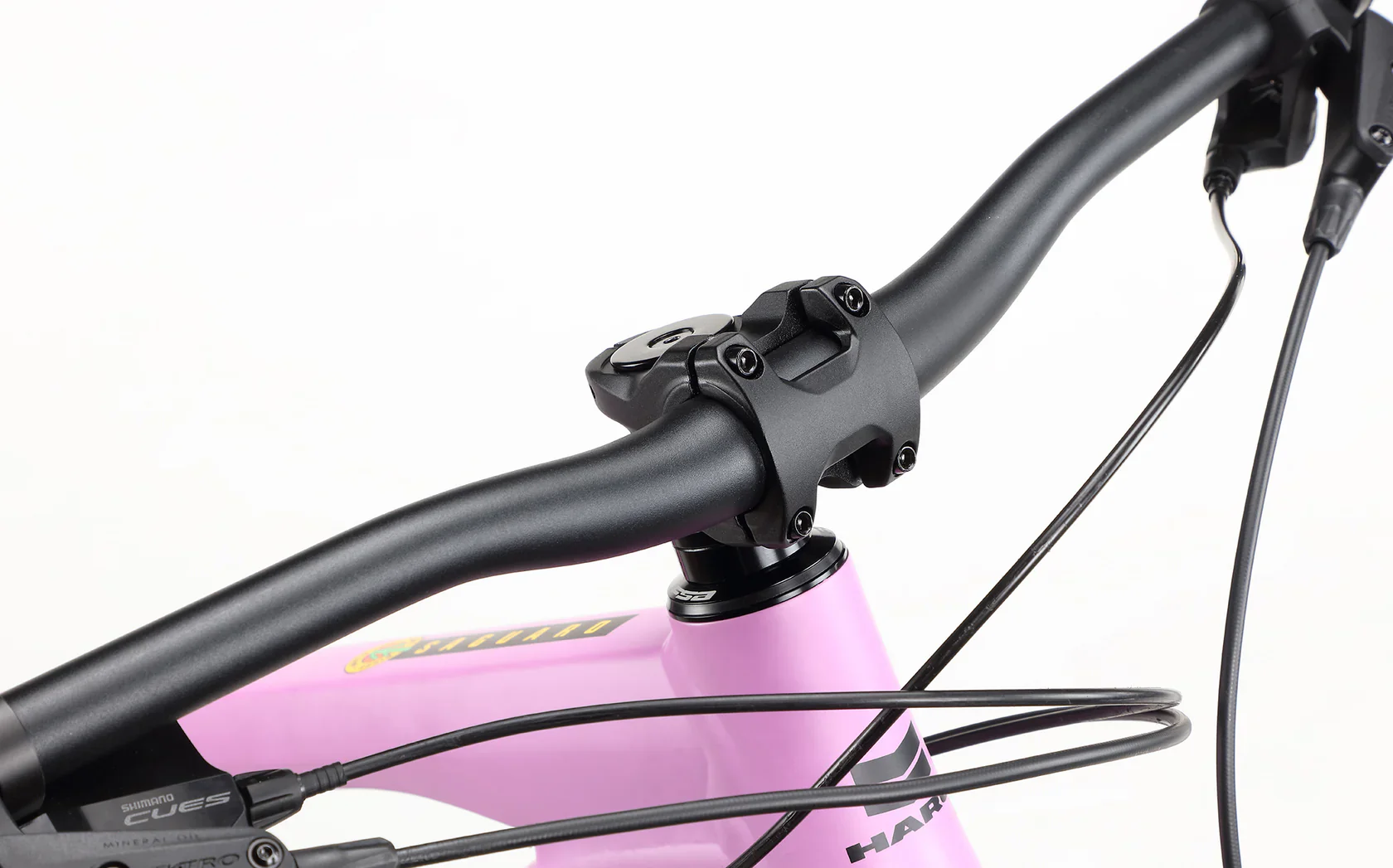

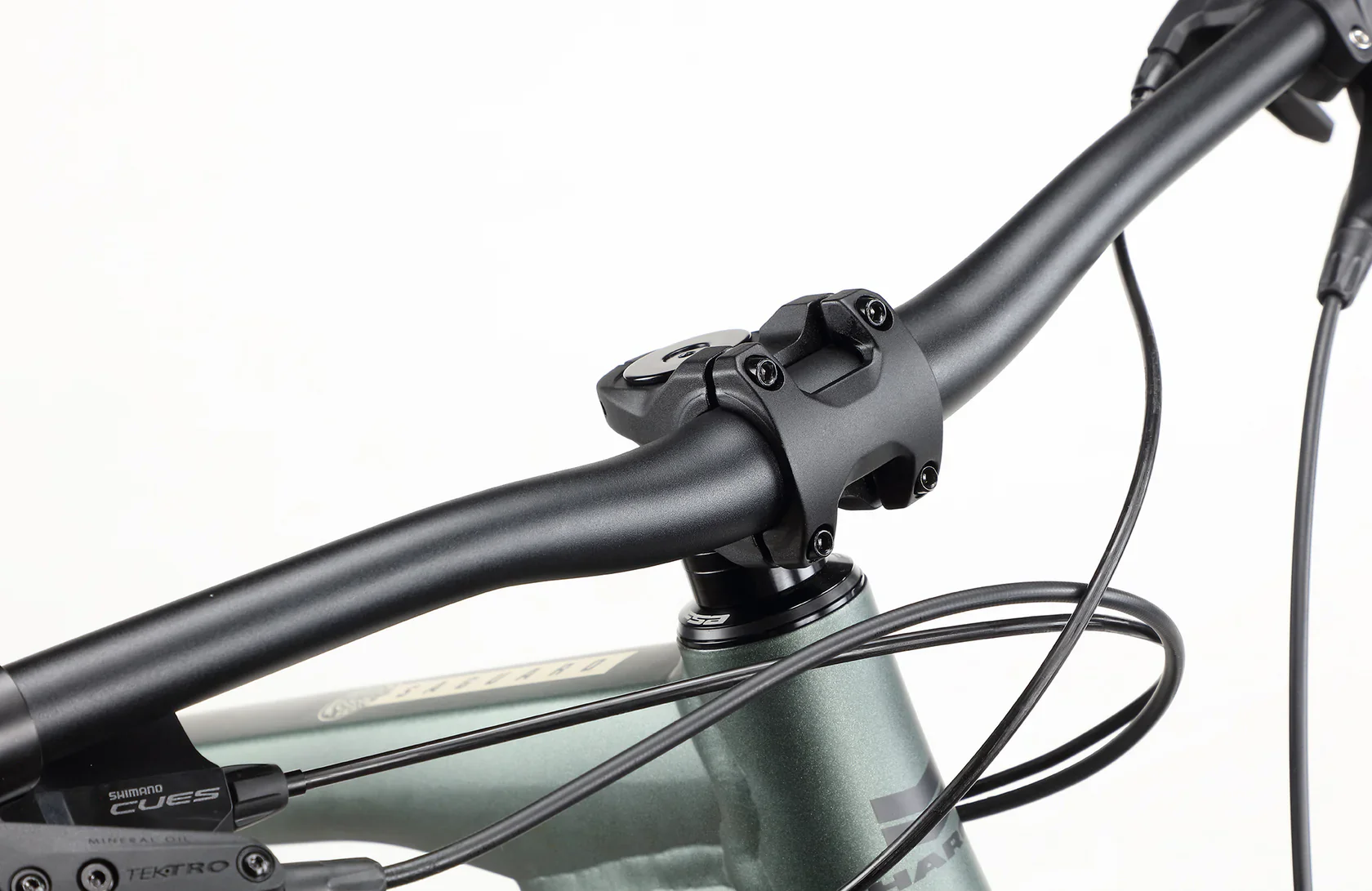

Stem:	Satori Ursa 35mm reach, 0° rise
Bars:	Haro Alloy 800mm wide, 20mm Rise, 6° back sweep, 4° up sweep

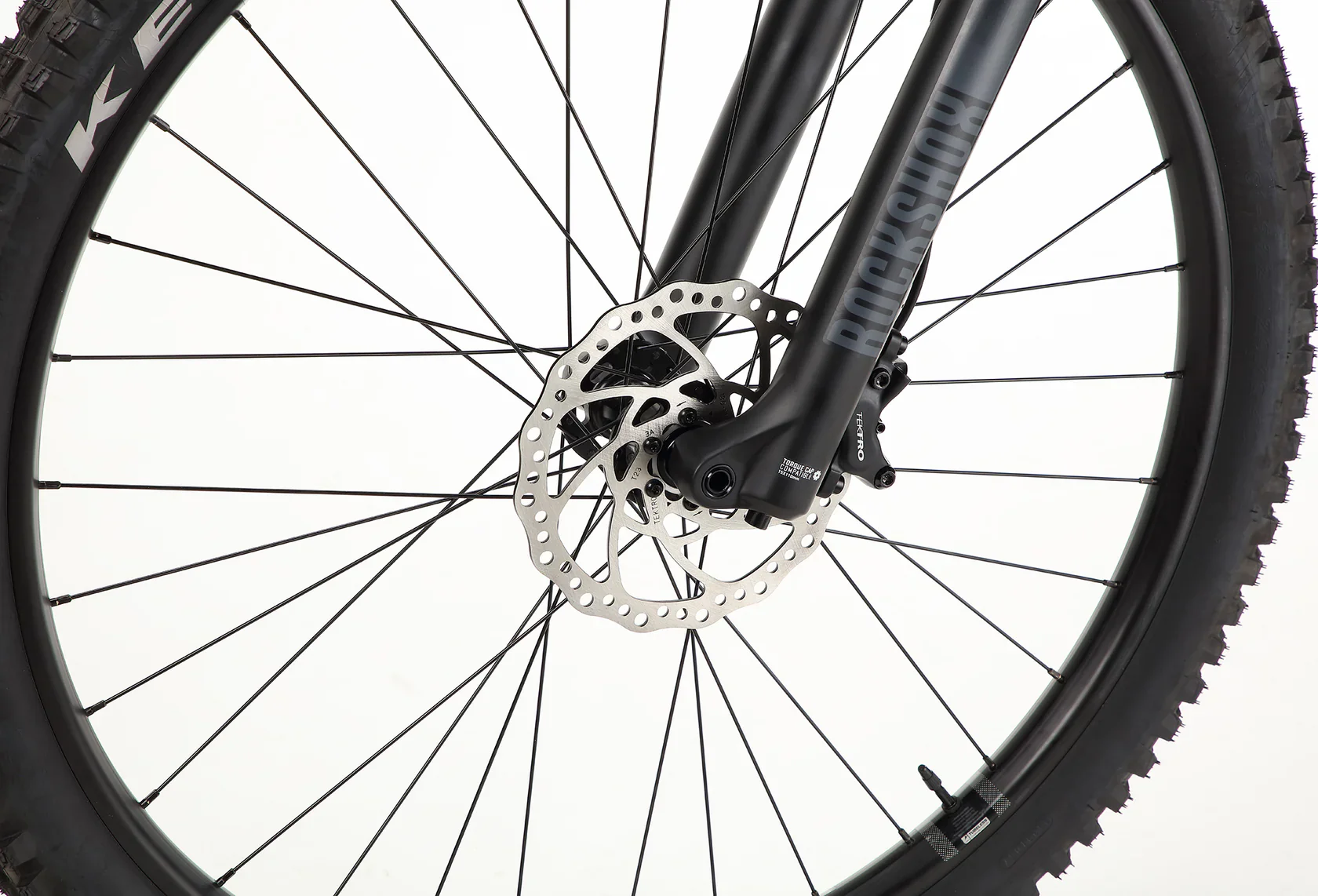

Front brake:	Tektro HD-M530-F 4-piston hydraulic, 180mm rotor

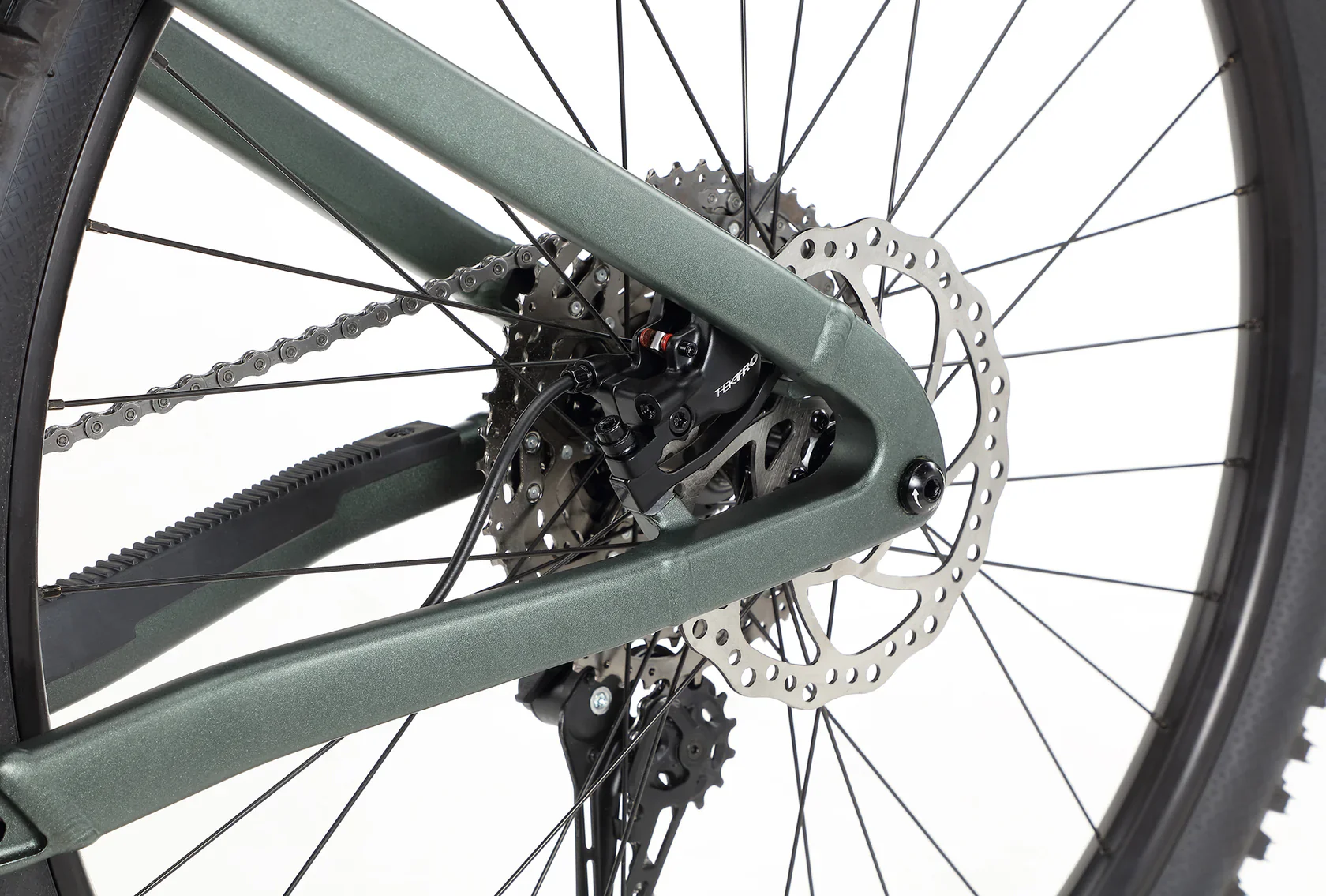

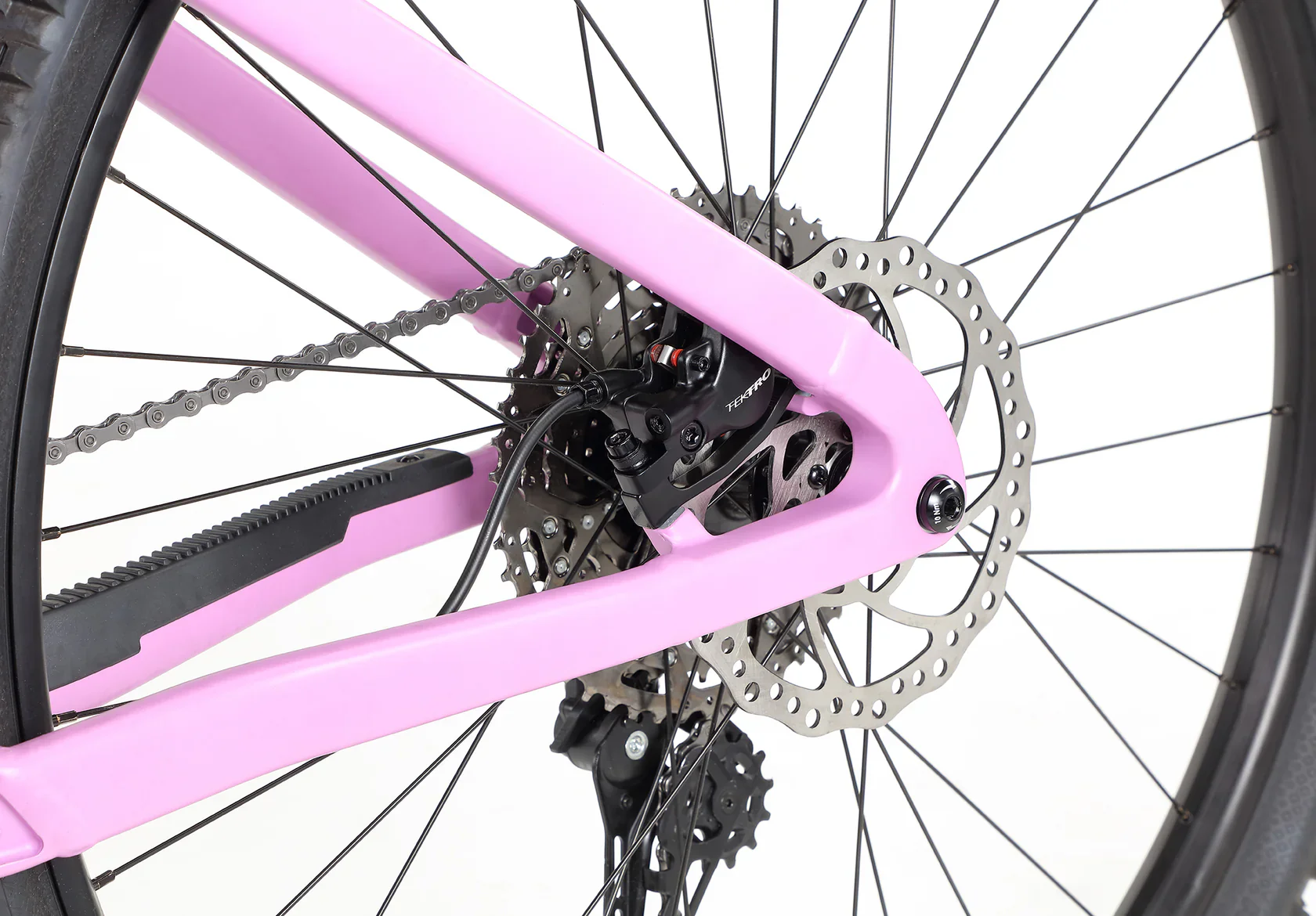

Rear brake:	Tektro HD-M530-R 4-piston hydraulic, 180mm rotor

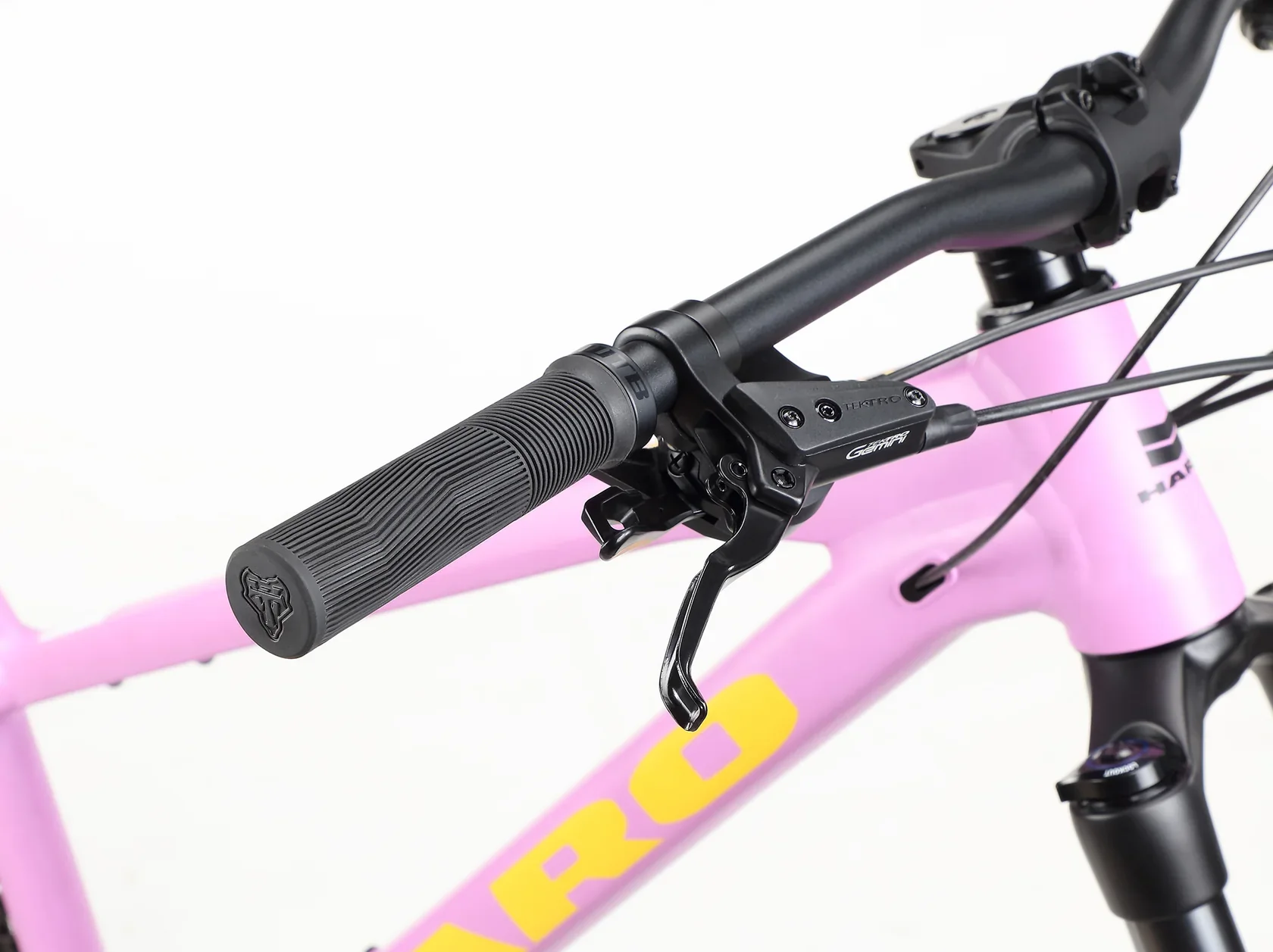

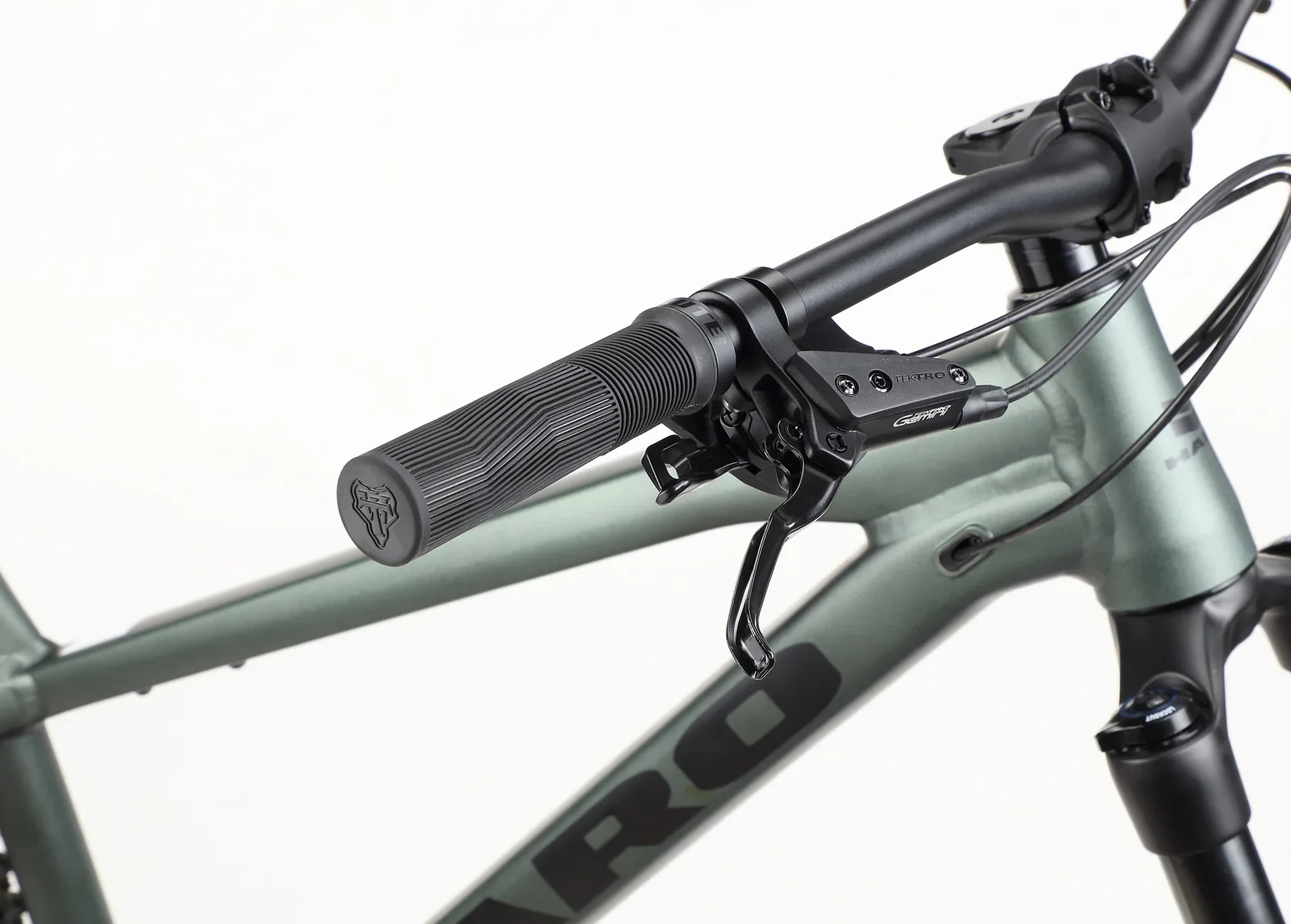

Brake levers:	Tektro HD-M530

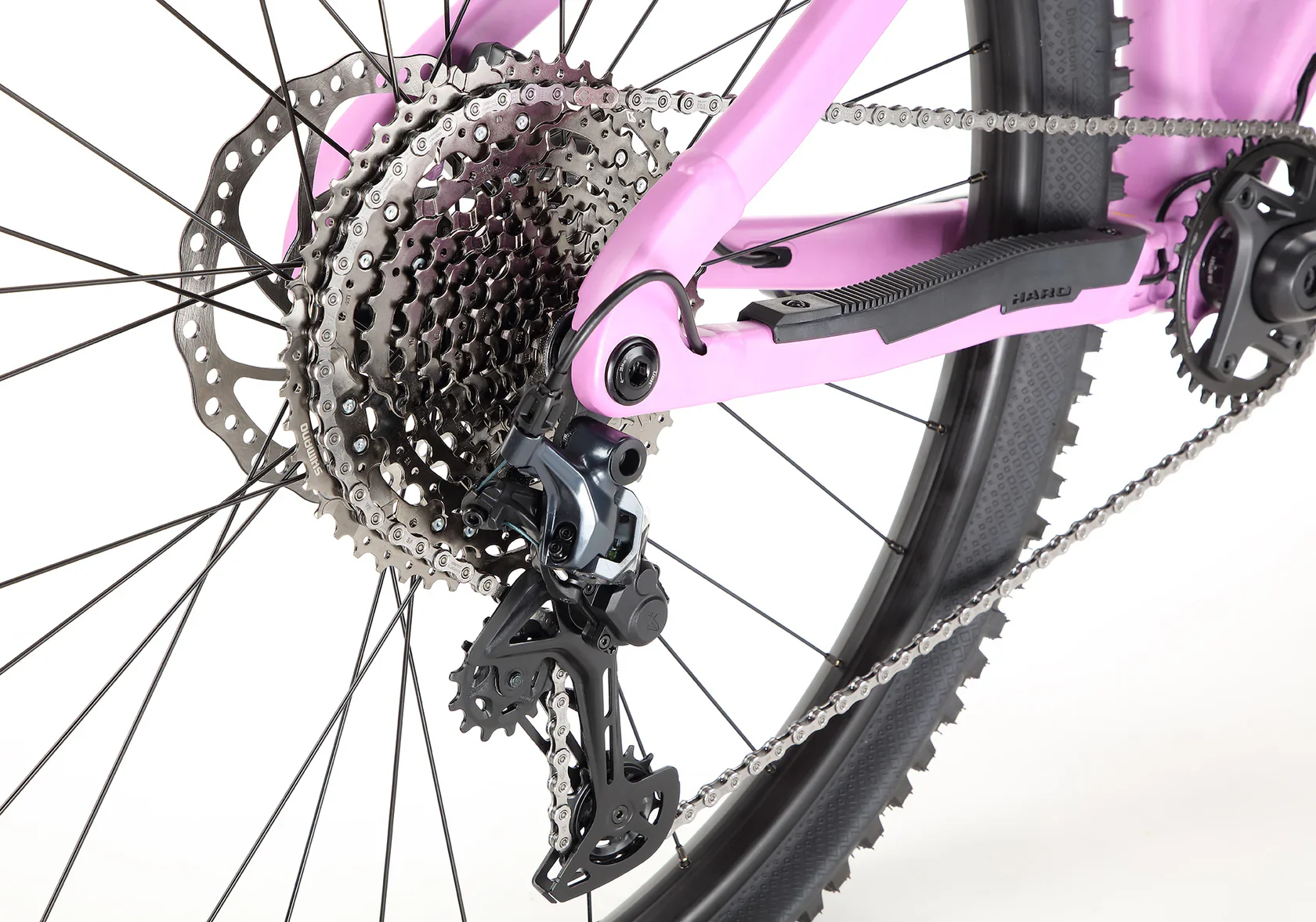

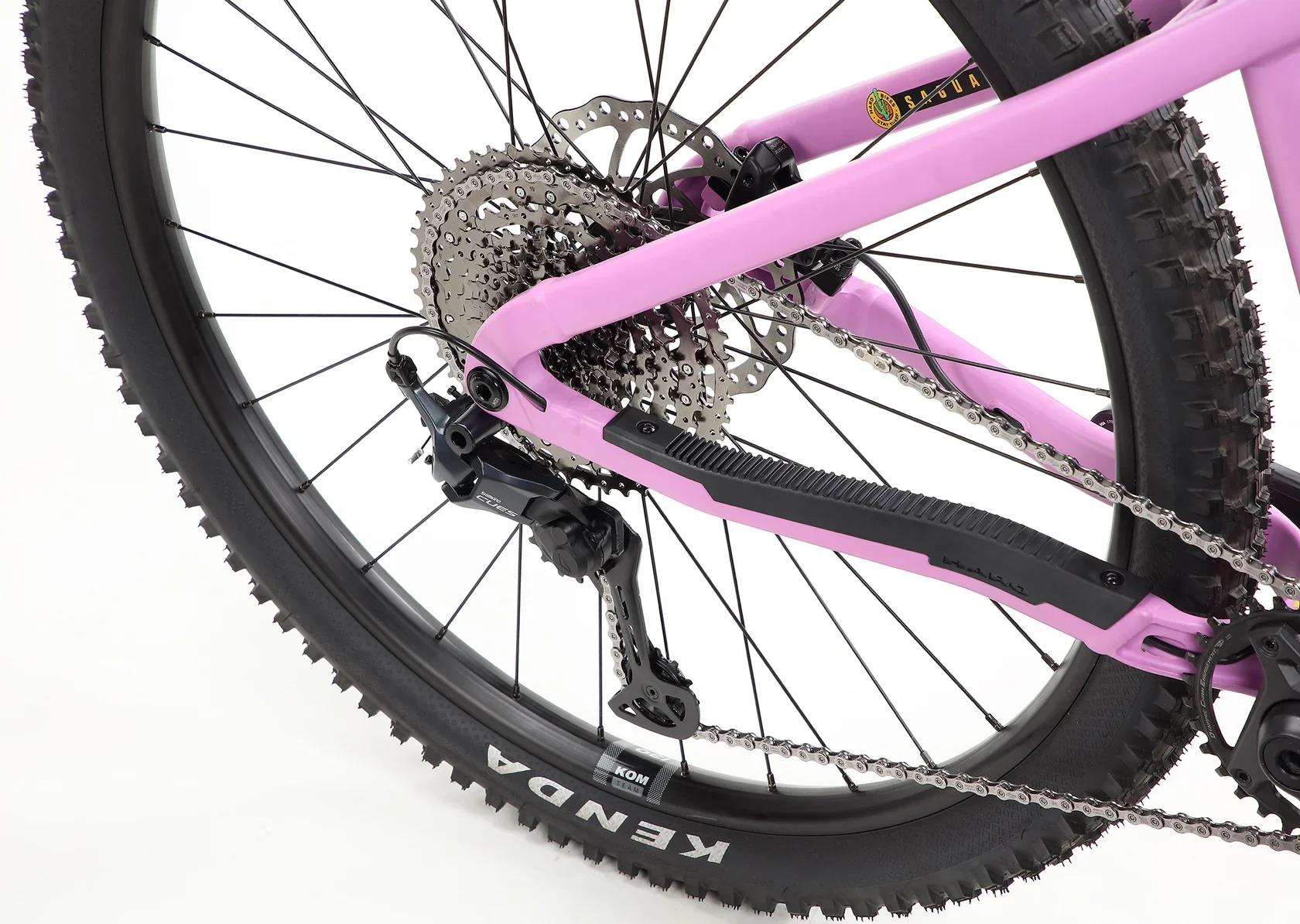

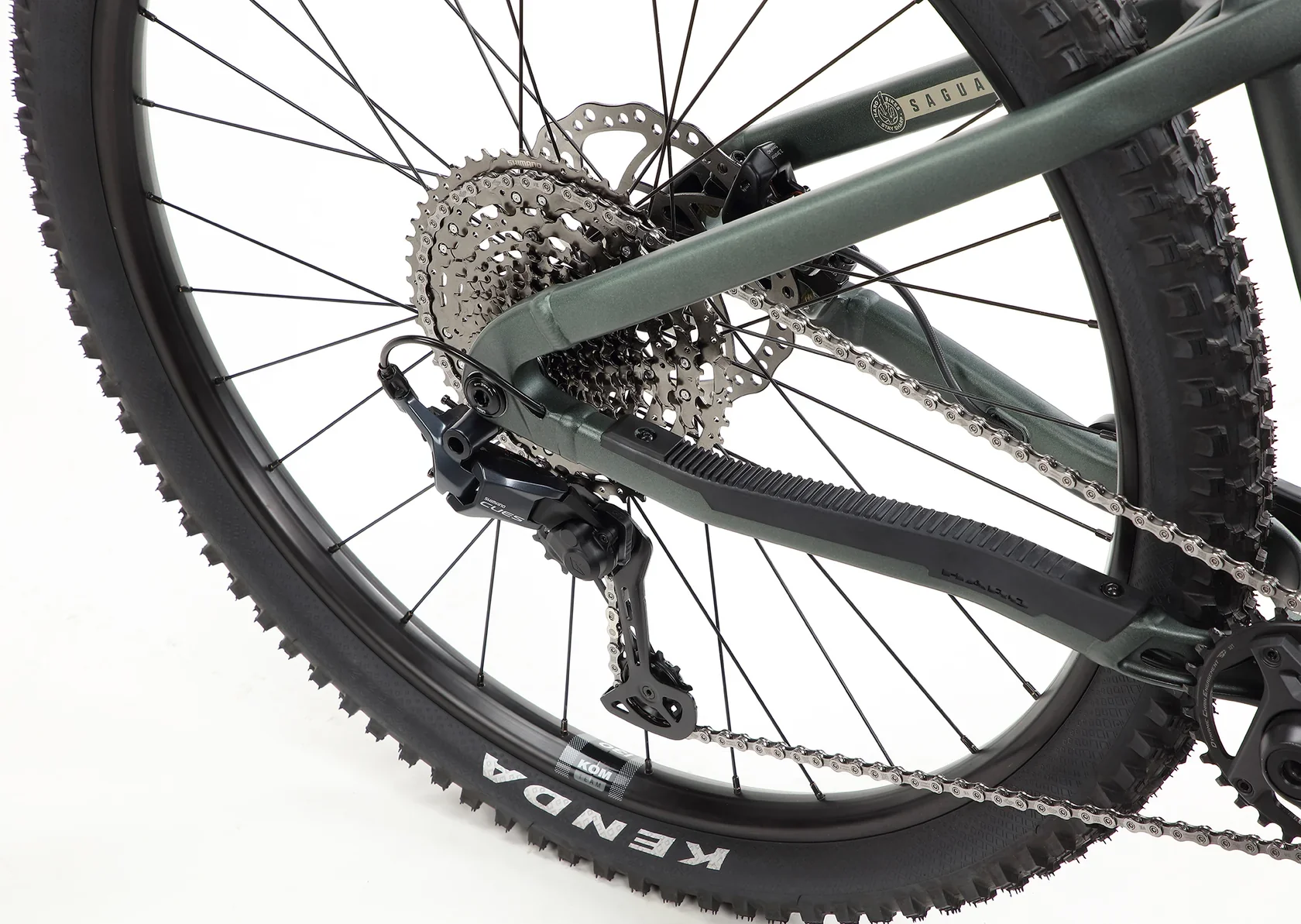

Rear derailleur:	Shimano CUES RD-U6000 11 Speed

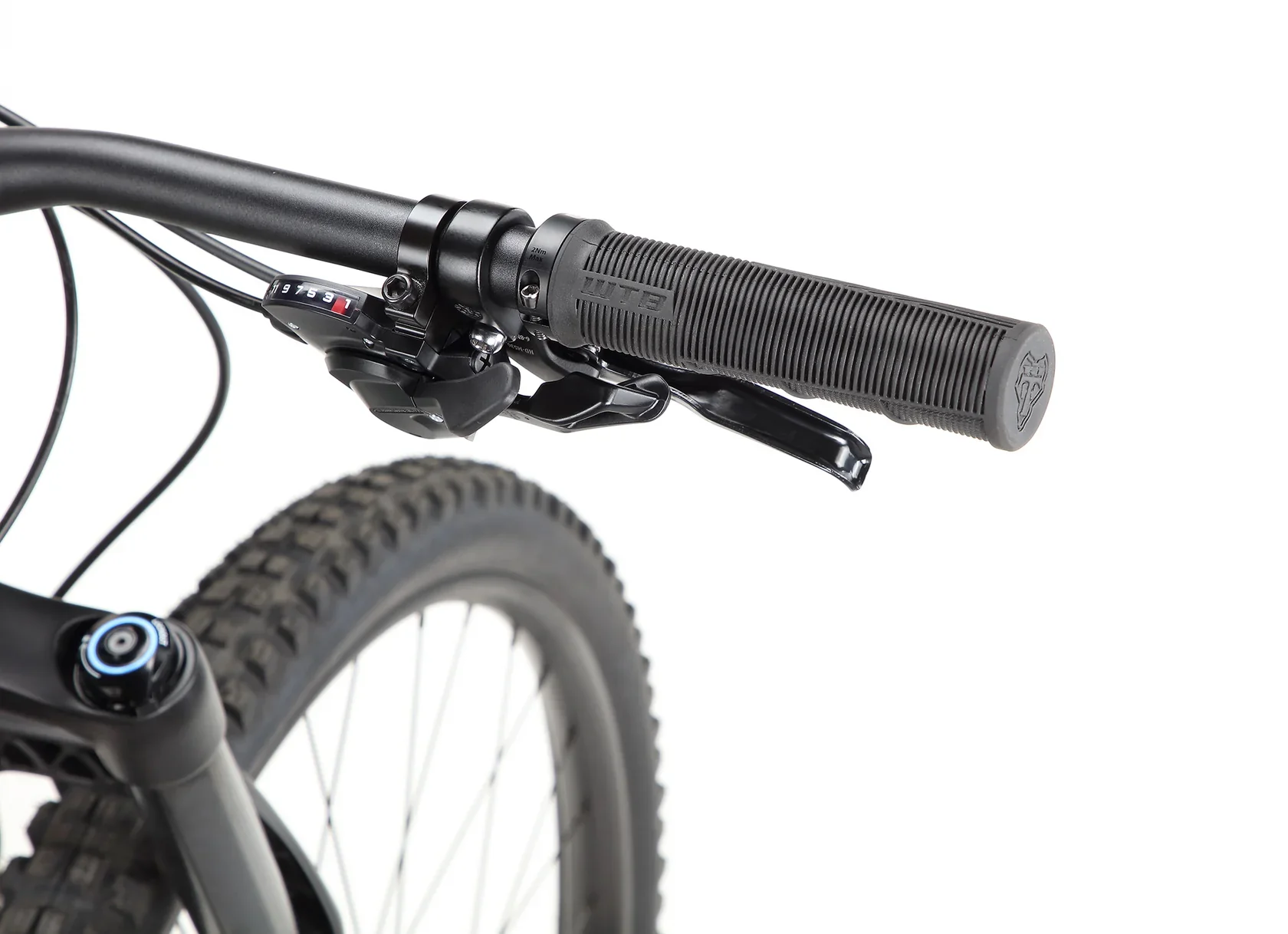

Shifter:	Shimano CUES SL-U6000 11 Speed trigger shifter
Speed:	1 x 11

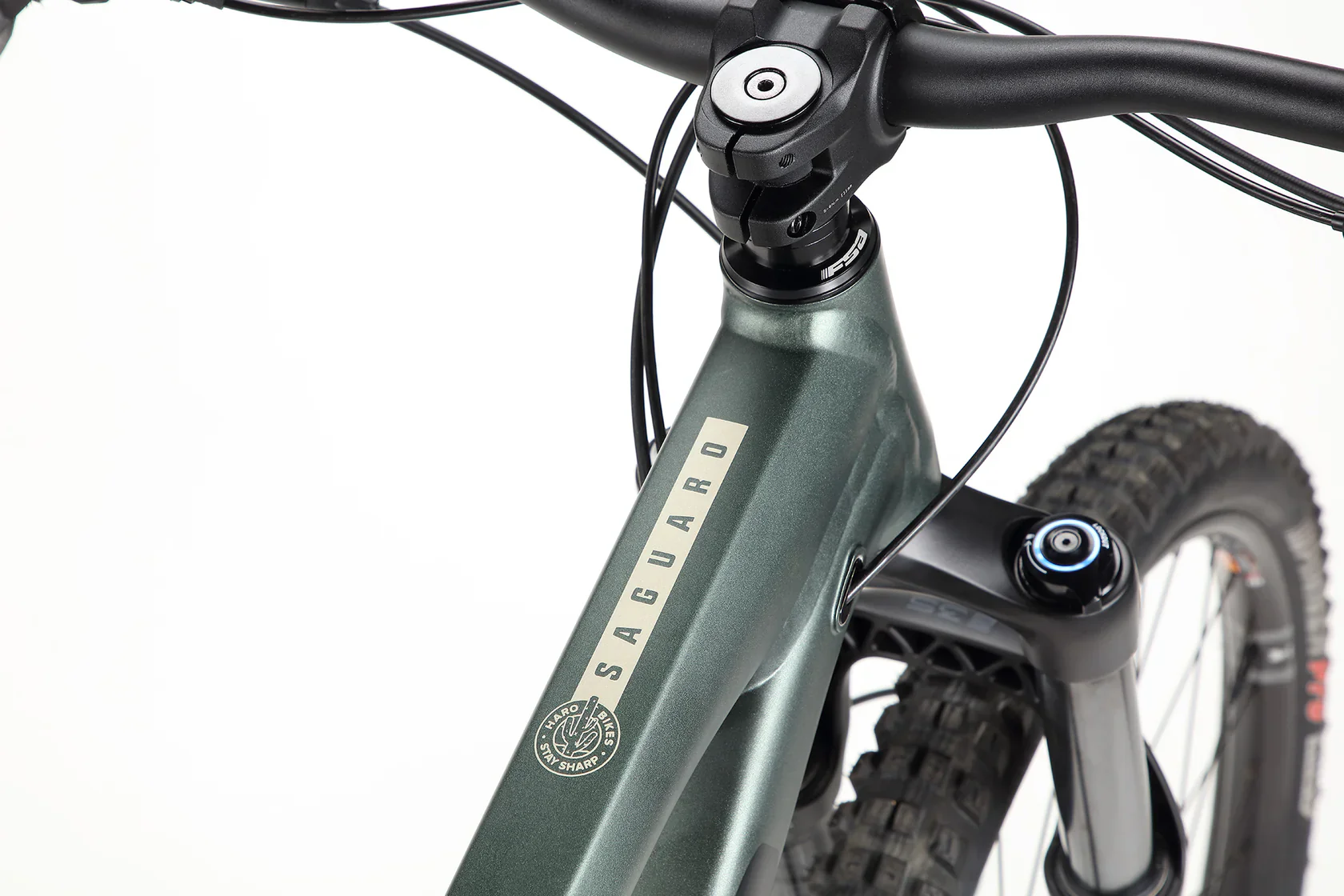

Headset:	FSA Orbit Tapered 1-1/8" - 1-1/5", 1.5E ZS/ NO.57E
Wheelset:	WTB KOM Team I 30, TCS 2.0, sleeved. 32H 6 Bolt - 15 x 110mm | 12 x 142mm

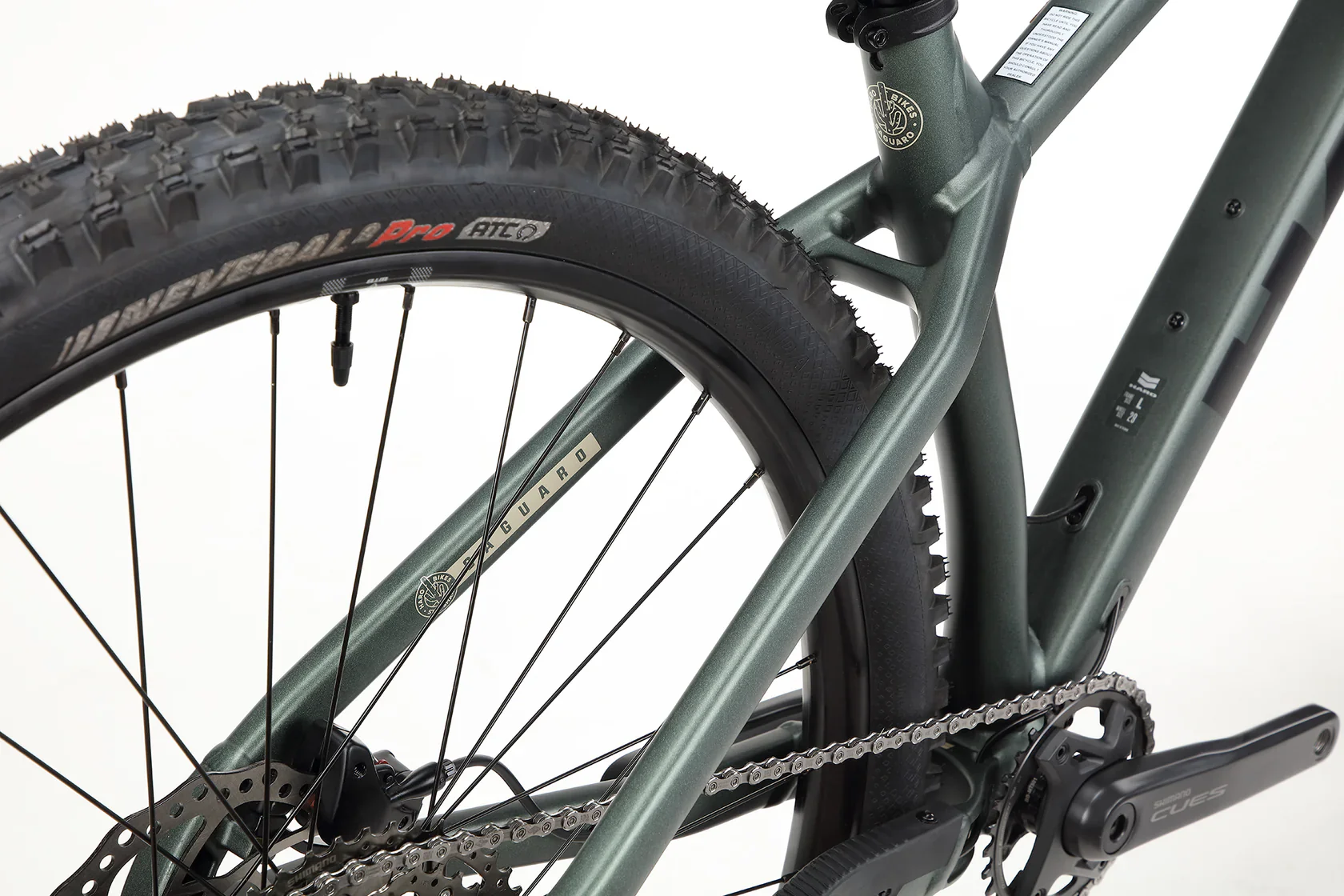

Tyres:	Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration.

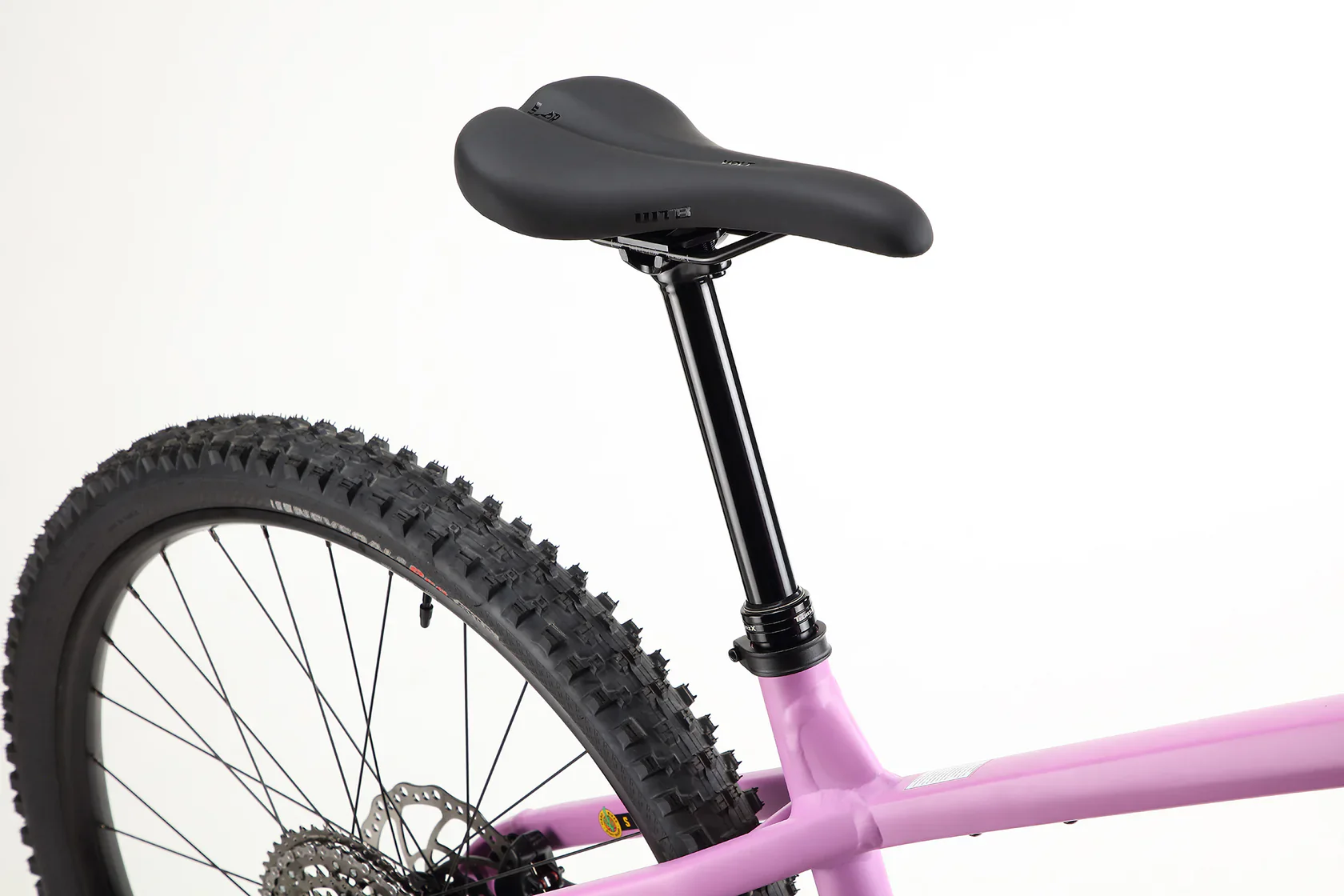

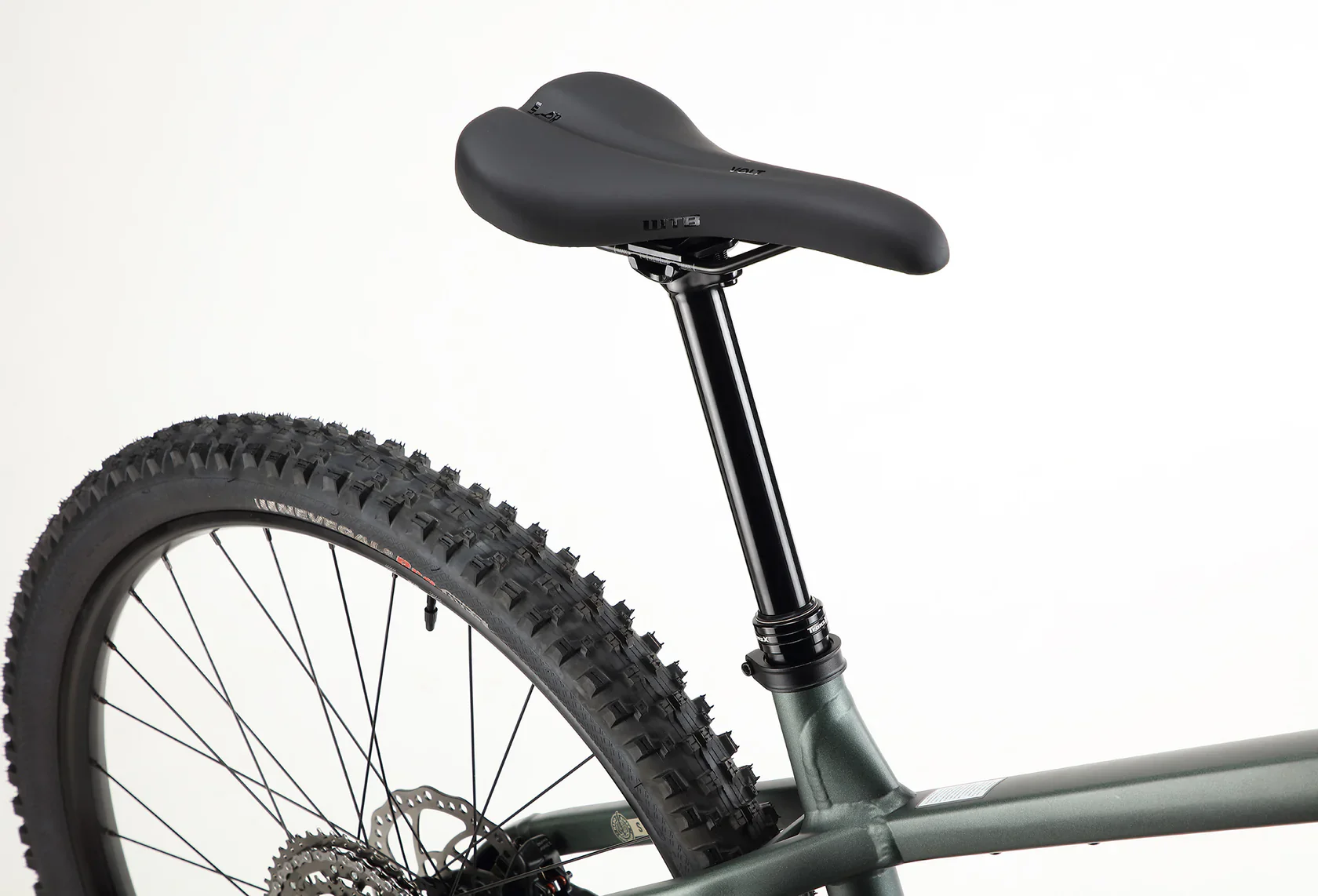

Seat post:	TranzX JD-YSI34 dropper. Small 150mm, Medium 170mm, Large/X-large 200mm
Saddle:	WTB Volt Medium chromoly rails. PU Leather. Flex-tuned.

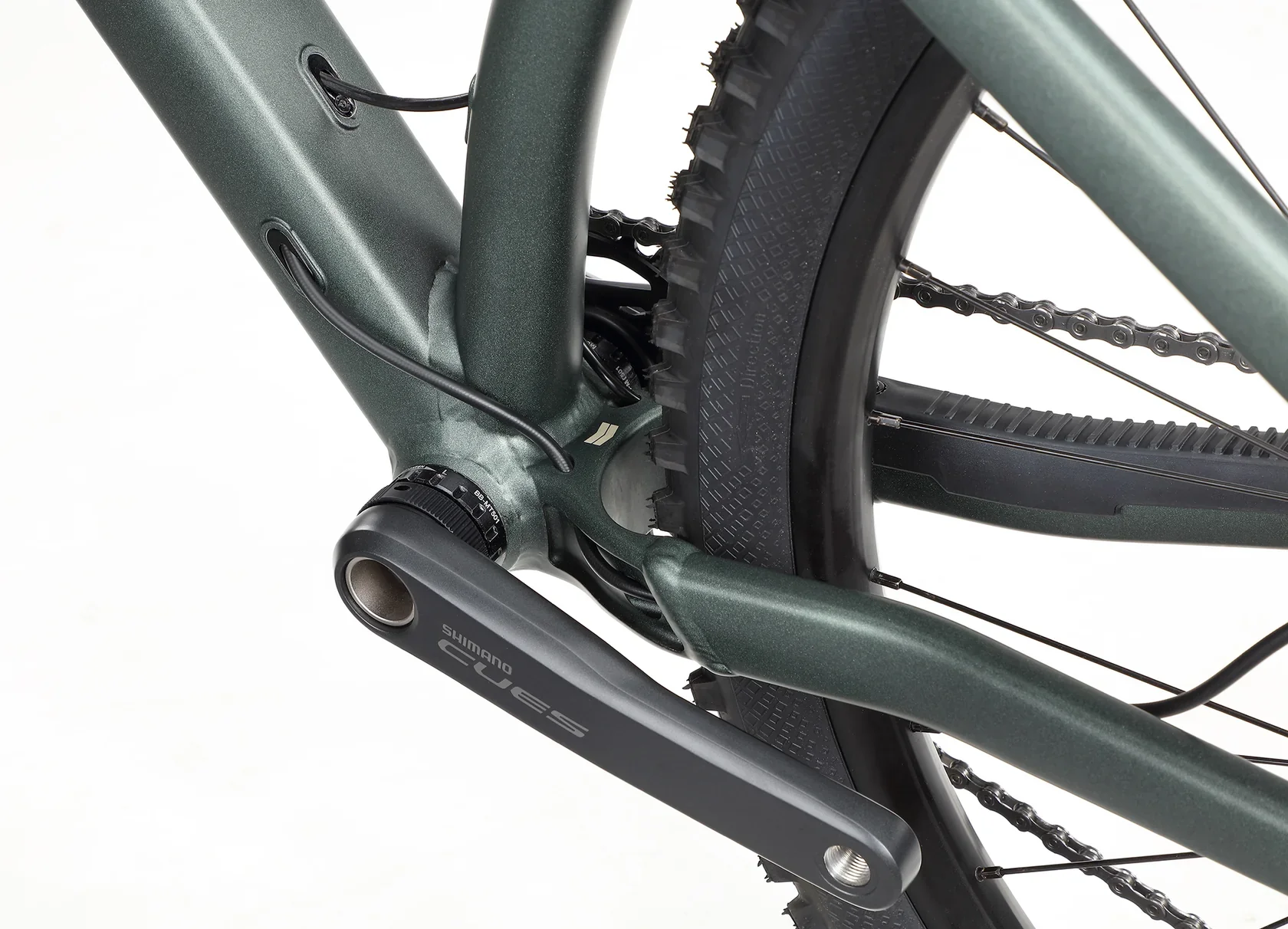

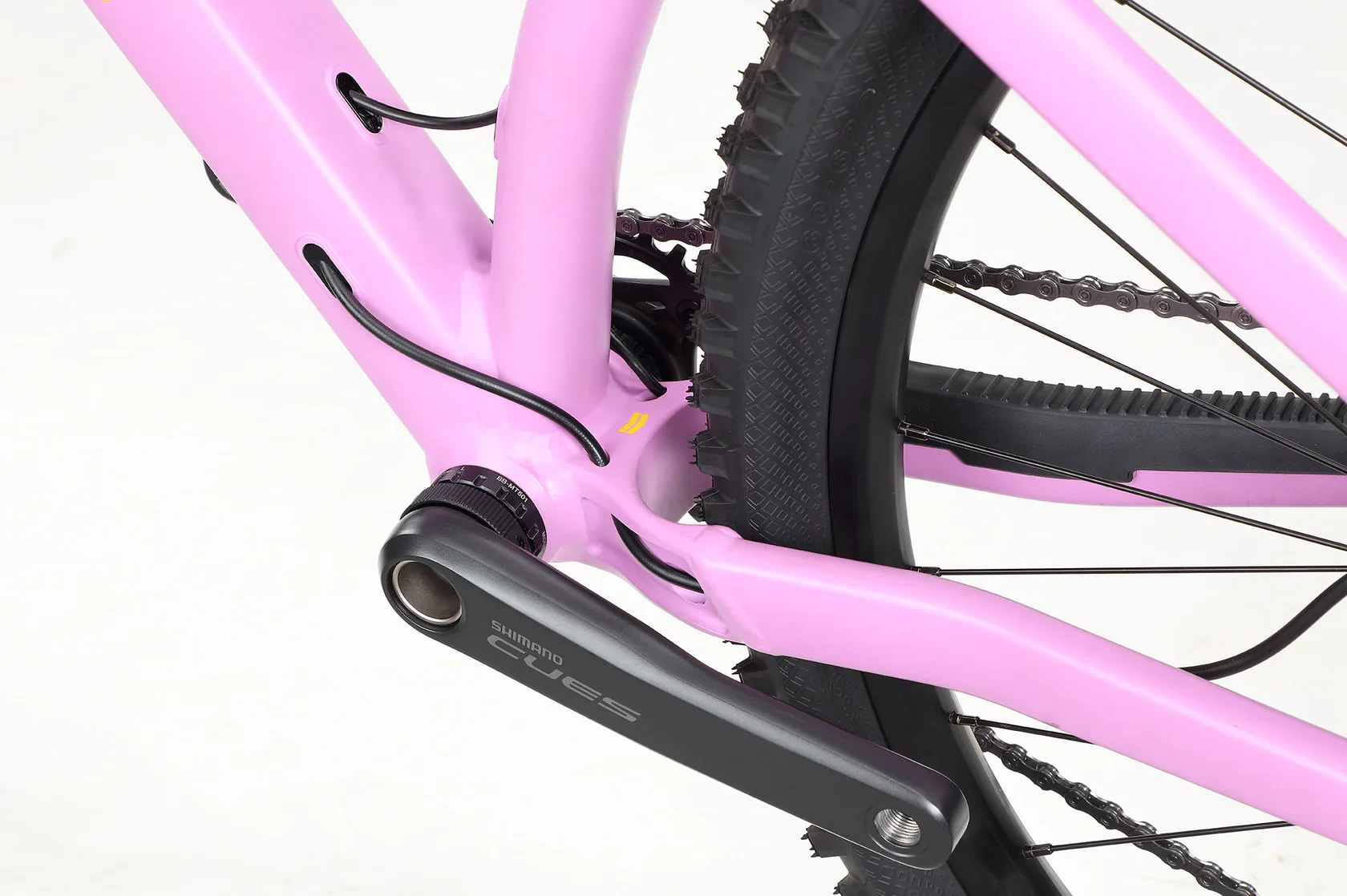

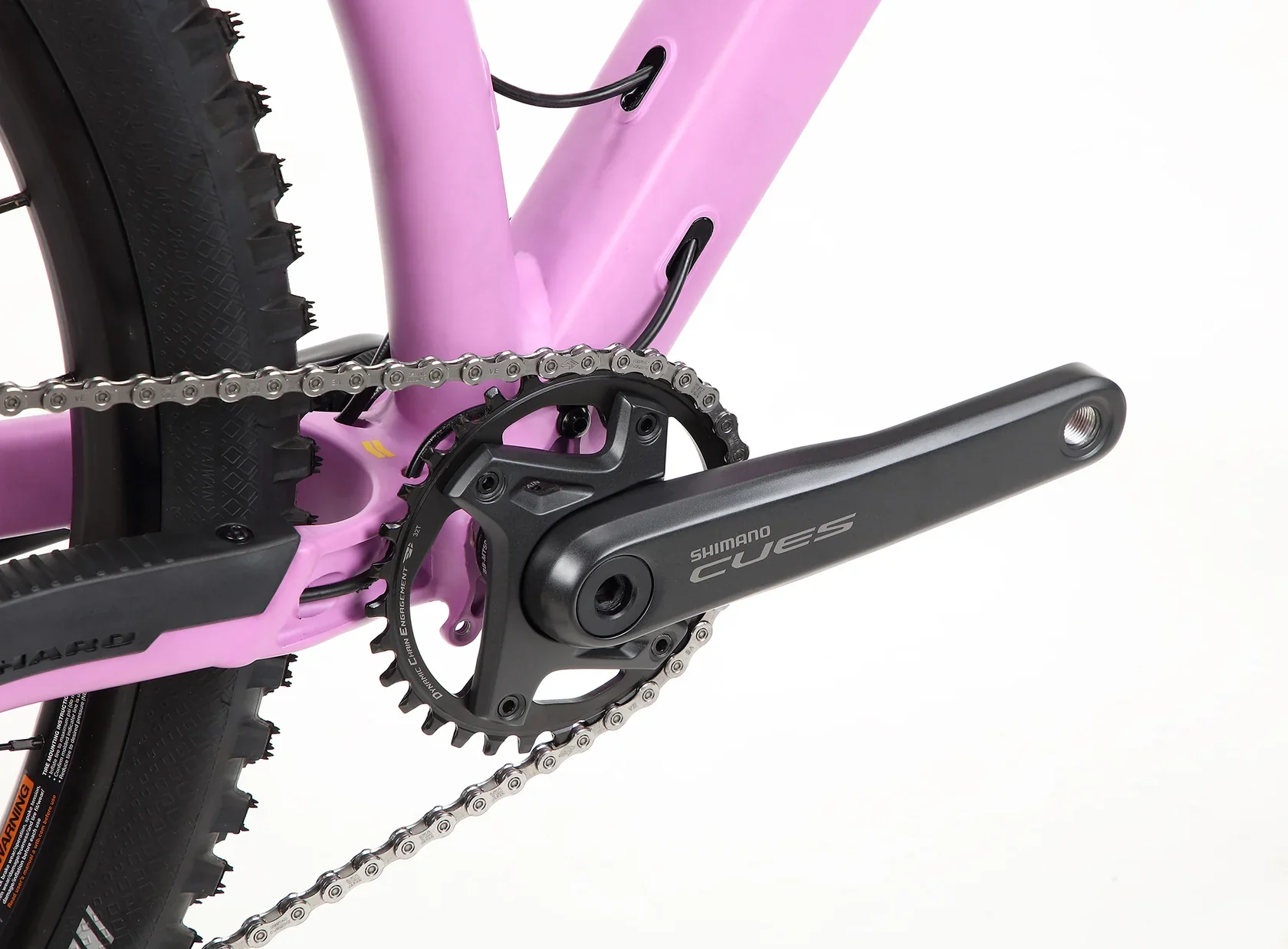

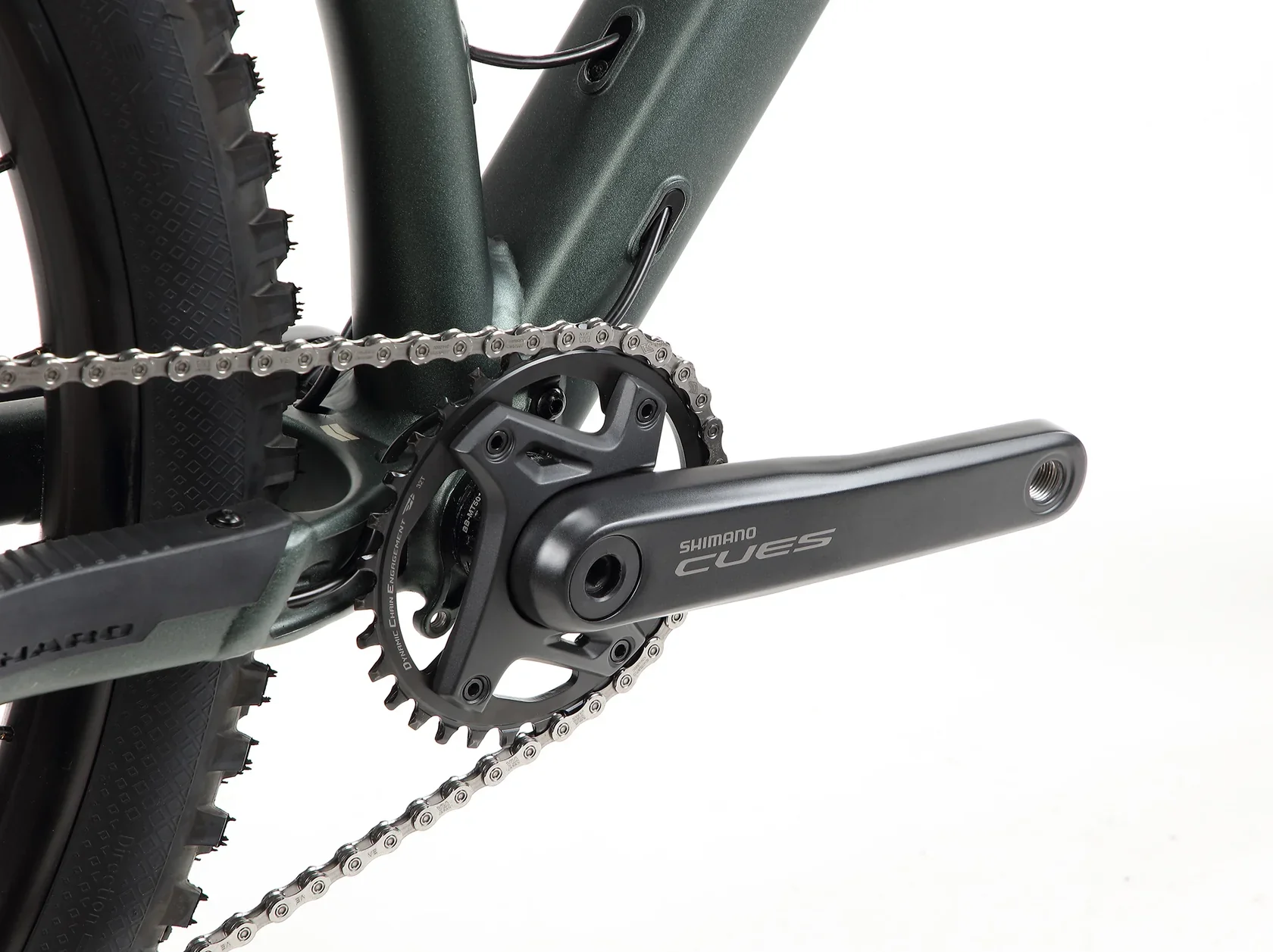

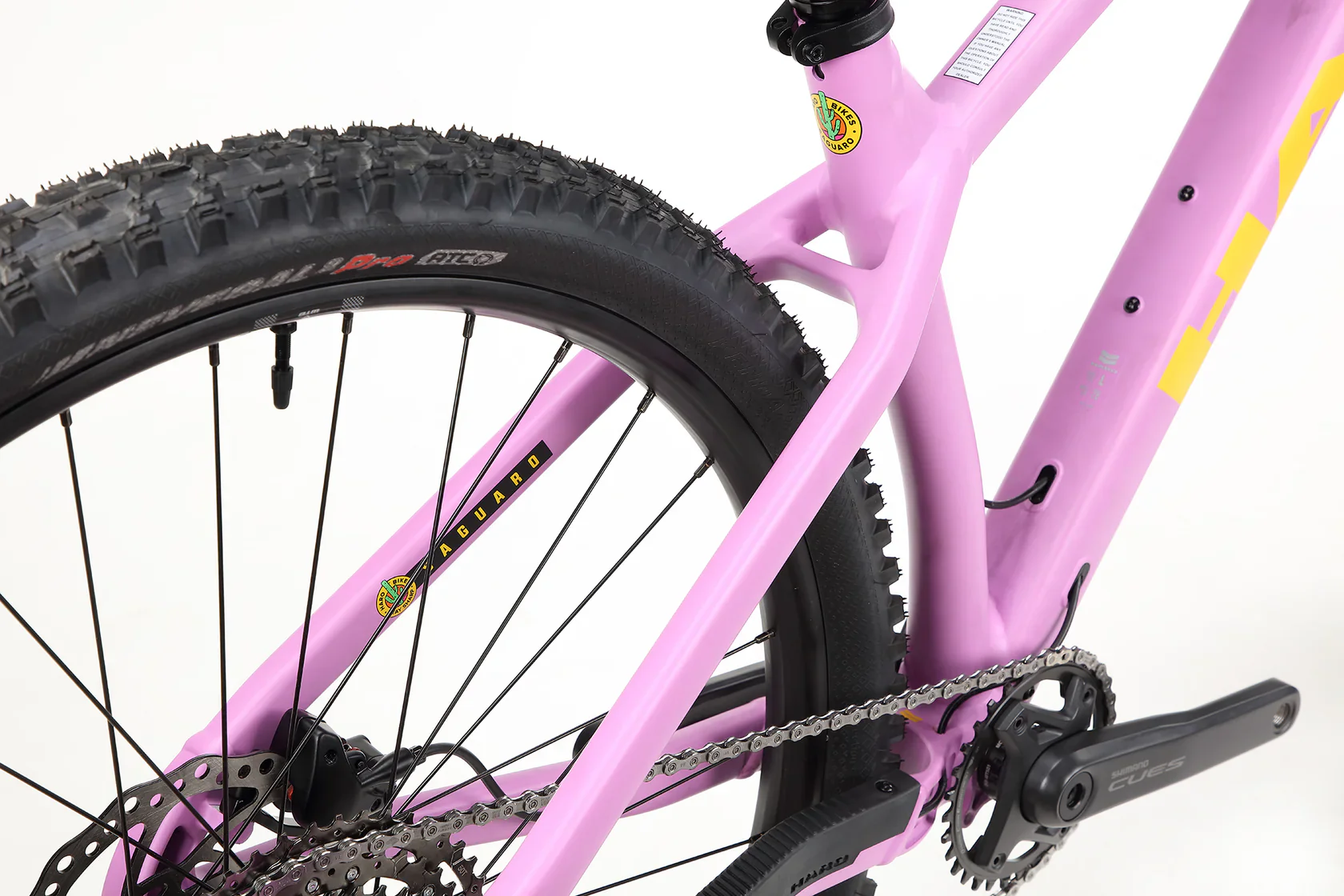

Chainset:	Shimano Cues 2-piece. 170mm - 32T chainring
Bottom bracket:	Shimano BB-MT501
Chain:	Shimano CN-LG500 Link Glide

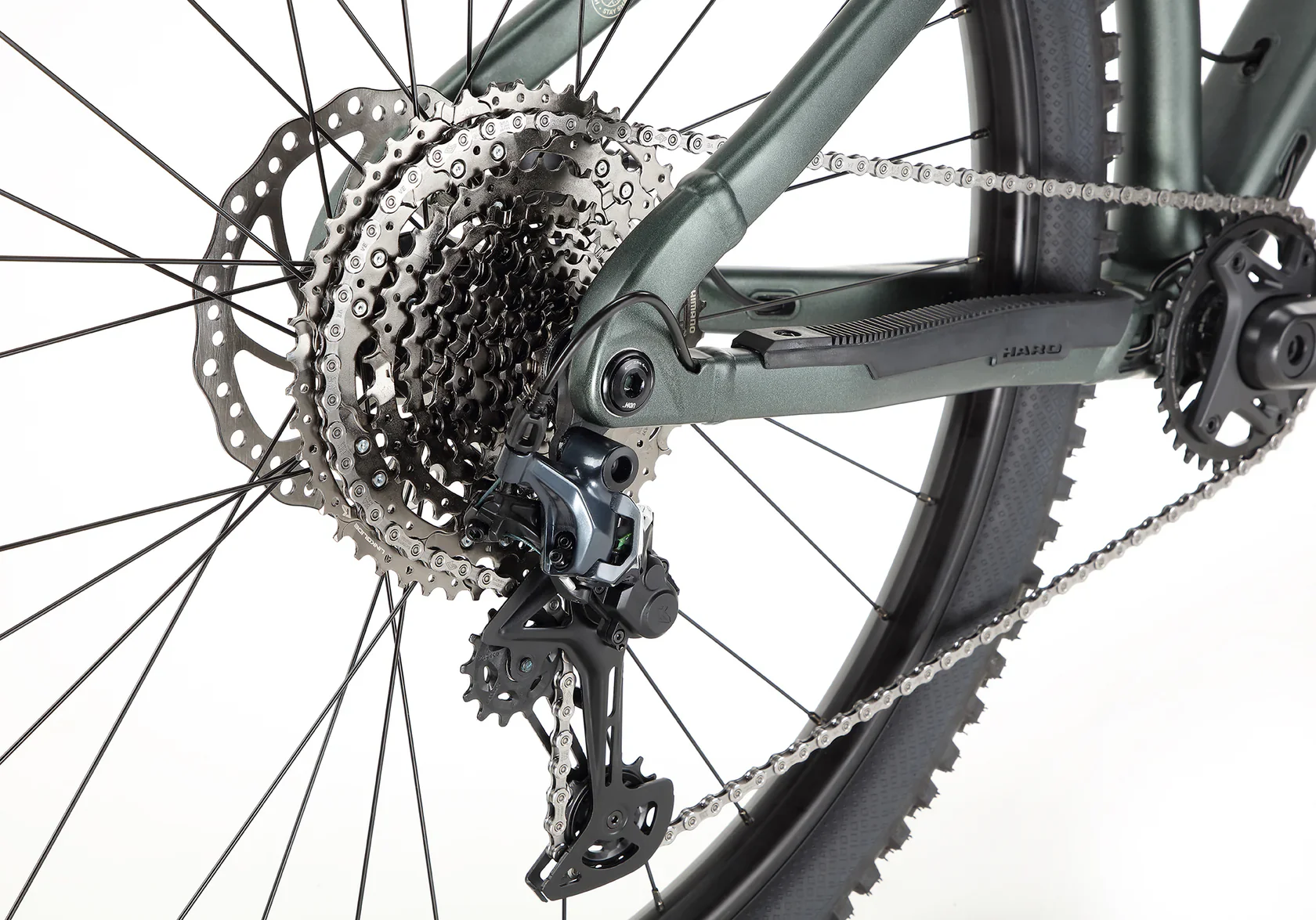

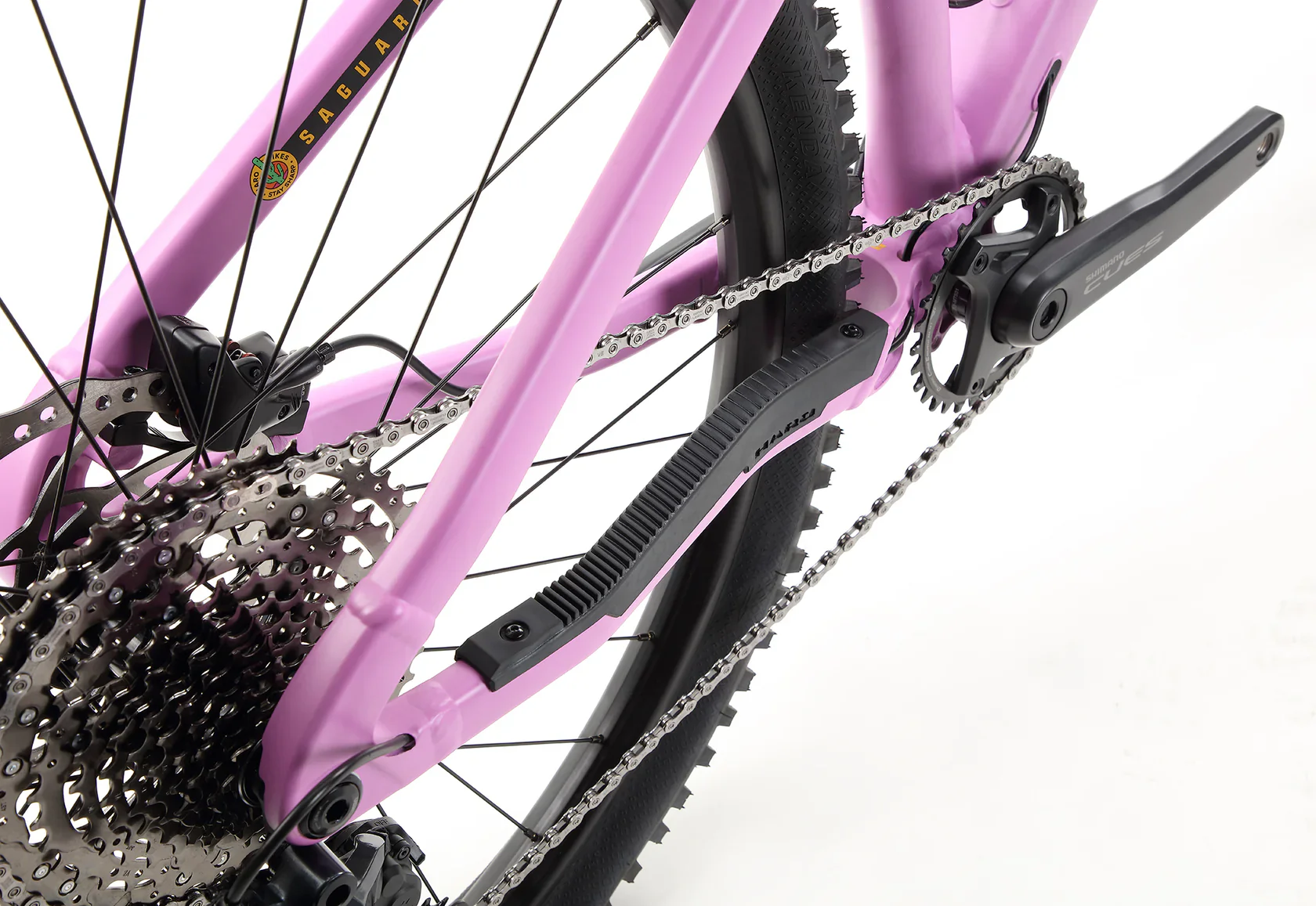

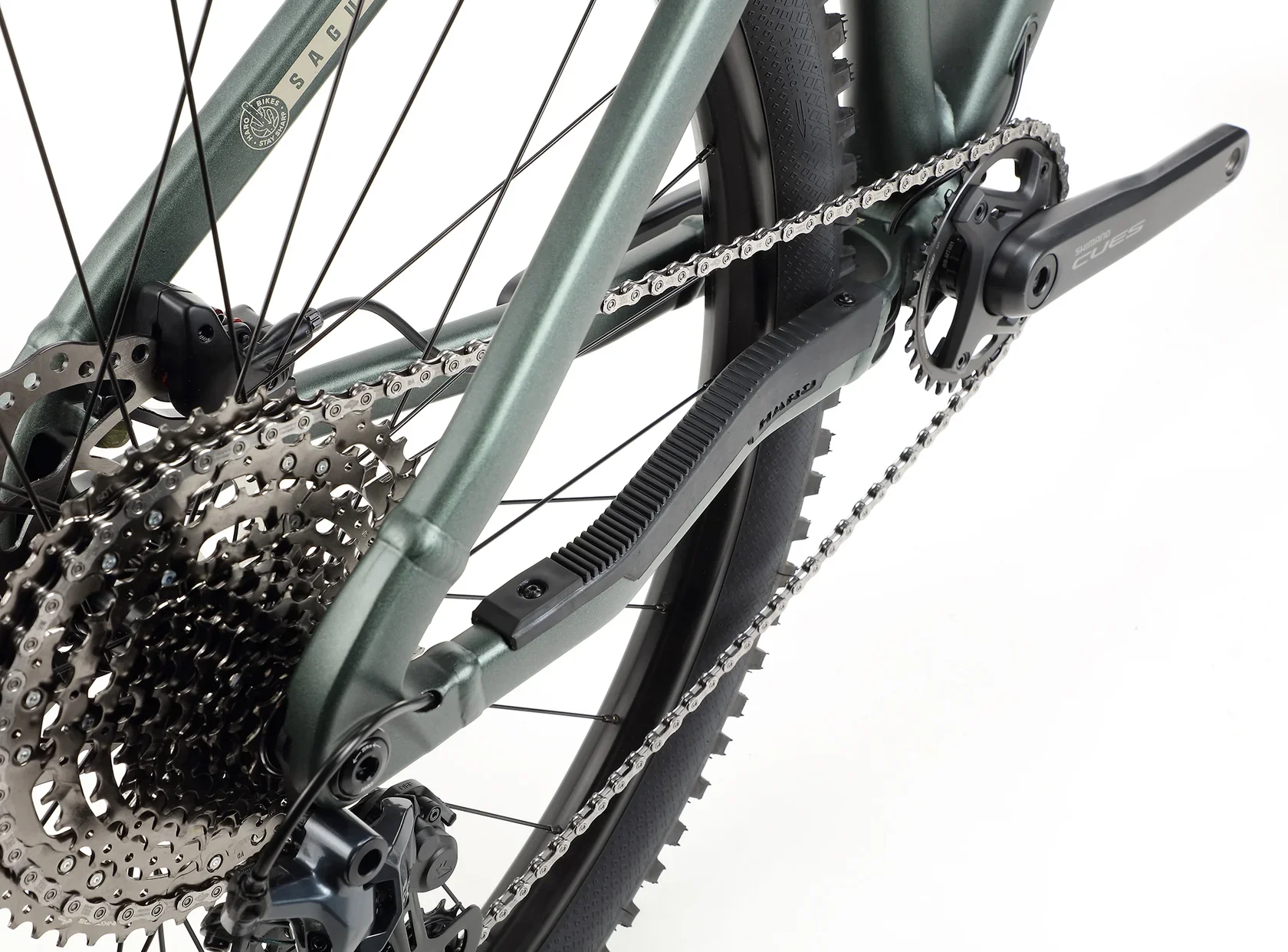

Cassette:	Shimano CUES CS-LG400-11 Cassette - 11-50T
Cassette ratio:	11-13-15-17-20-23-26-30-36-43-50
Weight:	15.2kg (approx.)
Please note:	Occasionally, without notice, manufacturers change product design and/or specifications.
