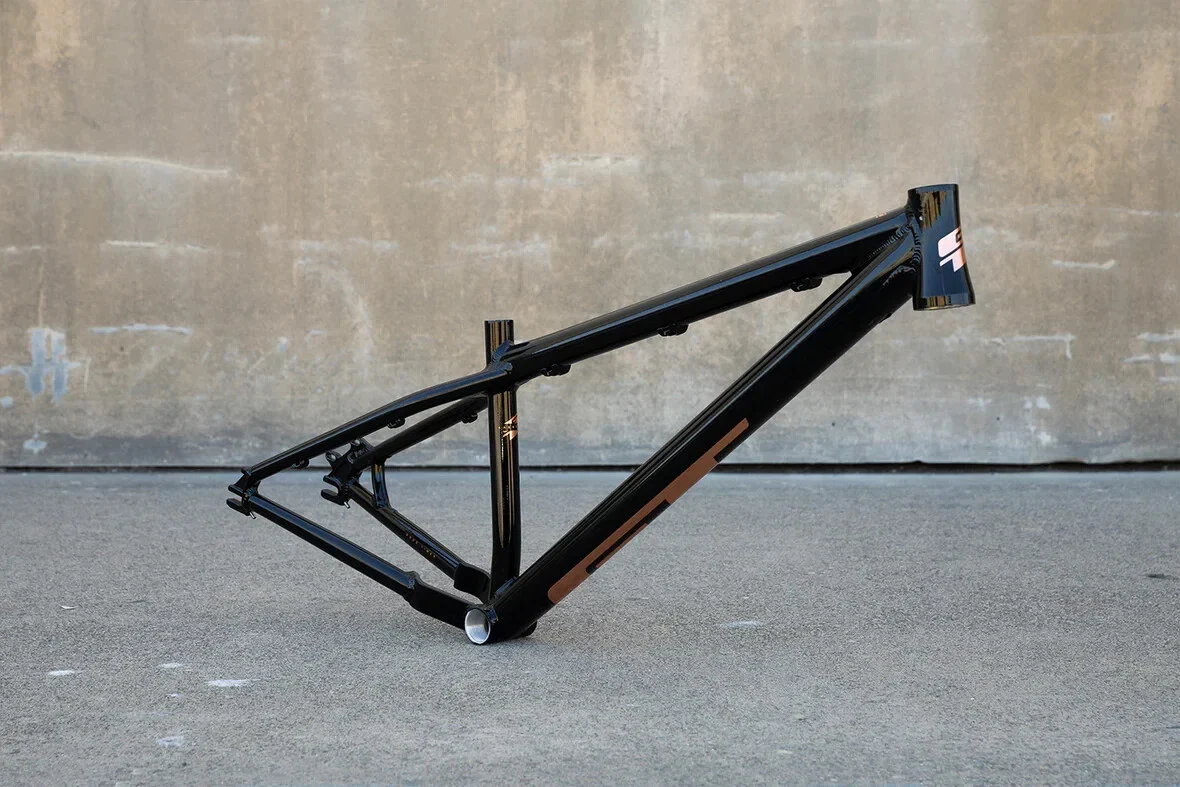

GT LaBomba 24" Jump Bike Frameset

The LaBomba is our bombproof dirt jump frame with ultra-responsive geometry to get you in the air and making shapes. Made to be a build-and-rip platform, the frame features adjustable dropouts with an integrated chain tensioner, and the headtube is pre-drilled and Gyro ready. Build it up with your favorite 24” wheels and take to the air.

THE O.G RIDE FEEL (ORIGINAL GEOMETRY): This frame is designed to inspire confidence in the air, whether it's your first double or your first double tailwhip. Its short chainstays create a playful ride through jumps and corners, while its adjustability and sizing options let you fine-tune your whip for the perfect fit.

BUILD IT AND RIP: Designed as a purpose-built tool for logging air miles, this frame is simple and sturdy. The lightweight 6061 aluminum frame features predrilled Gyro holes, straightforward cable routing, integrated chain tensioners, and a threaded BB. Build it your way and let it rip!

SLIDING DROPOUTS: As a brand rooted in BMX, it’s a no-brainer to include sliding dropouts on a bike built for flying high and landing hard. With sliding disc brake mounts and integrated chain tensioners, you can dial in your rear-center length just the way you like it—and say goodbye to chain slap.



Frame specification:

• Frame material: 6061 Aluminum
  Bottom bracket: BSA threaded (not included)

• Brake: Disc Brake

• Steerer tube: Integrated 1-1/8"-1.5" Taper H/T

• Dropouts:3/8" Horizontal Adjustable Dropout w/ Integrated Chain Tensioners

• Frame size: One size

• Wheel Size: 24"

• Headset: Integrated 1 1/8in - 1 1/2in (select option)

• Seatpost: Seat Post Size: 27.2mm (Not Included)

• Seatclamp: 31.8 mm (Not Included)

Fork specification:

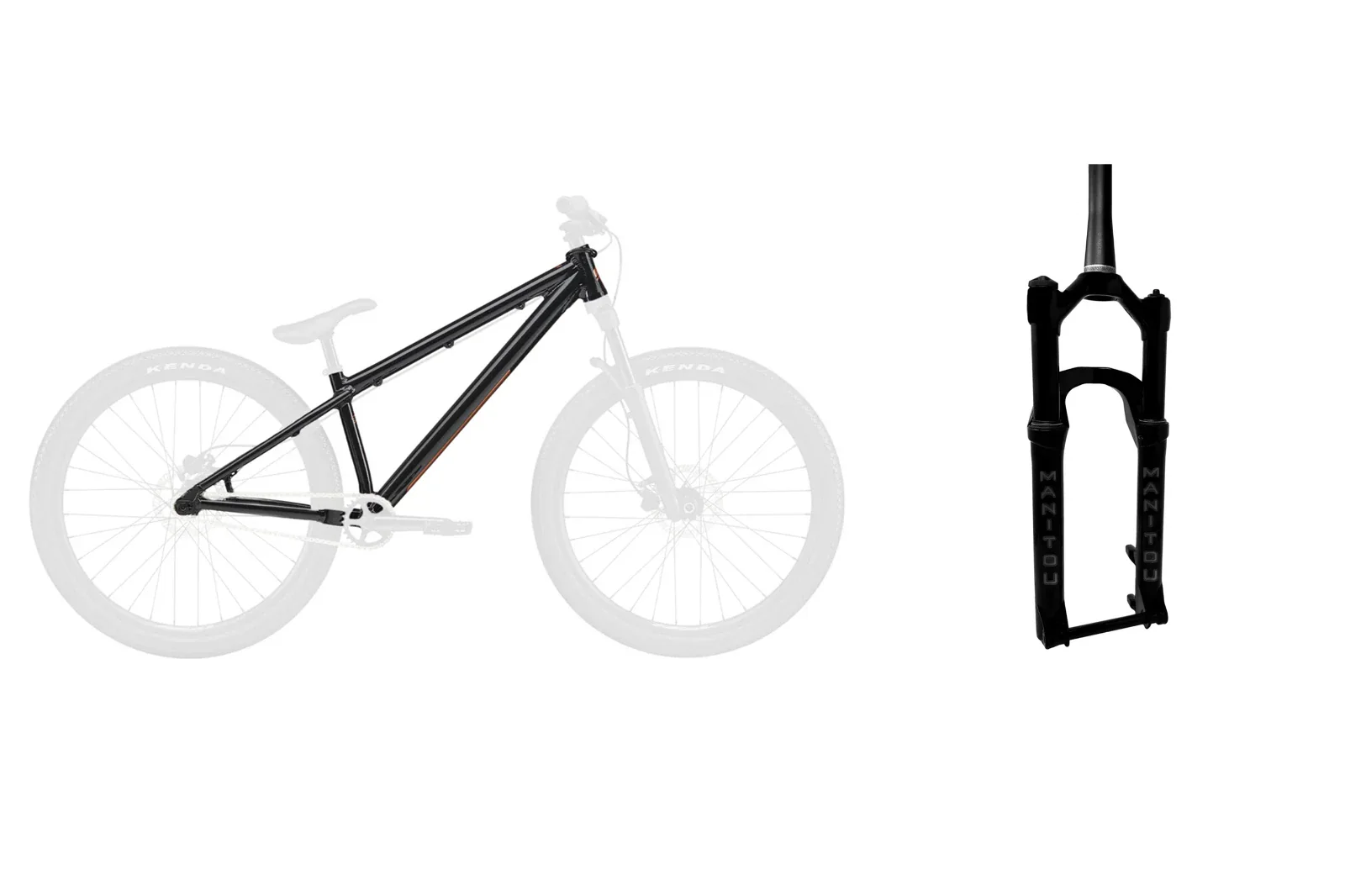

Manitou JUNIT Comp, a youth-sized 24” suspension fork. Finally, young riders have the option for either a 20” or 24” wheel to enjoy the lightweight, high-quality chassis. JUNIT Comp features a 1.5” tapered alloy steerer tube and a forged hollow crown. Thirty-two millimeter, 6000 series black anodised stanchions are completed with Manitou’s signature Reverse Arch. Lightweight riders benefit from the easily adjustable Air spring system, adjustable rebound, and our proven ABS+ damper.

• Air Spring

• Adjustable TPC Rebound Damping

• Wheel Size: 24"

• Travel: 110mm

• Offset: 40mm

• Spring: TS Air

• Compression Damping: ABS+

• Rebound Damping: in-leg adjustable TPC

• Adjustments: Air, Rebound, Compression

• Steerer: 1.5" Tapered

• Crown: Forged Beam

• Leg Diameter: 32mm

• Leg Material: 6000 Series Straight Wall Aluminium

• Brake Post Mount: 160mm (203mm Max)

• Supplied OE

• Axle: 15 x 110mm (boost)

• Max Tire Size: 69mm (61mm with fender)

• Colour: Gloss black with stealth decal

• Scope of delivery: fork & thru axle only

• Weight: 1795g
